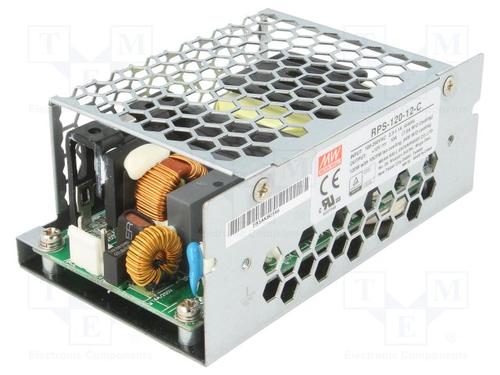

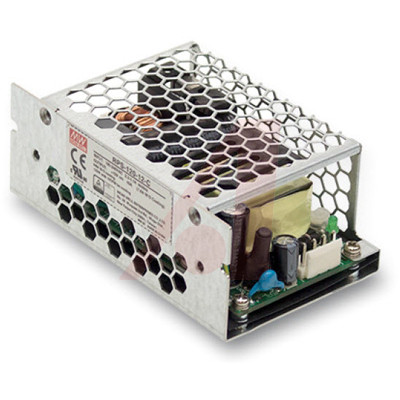

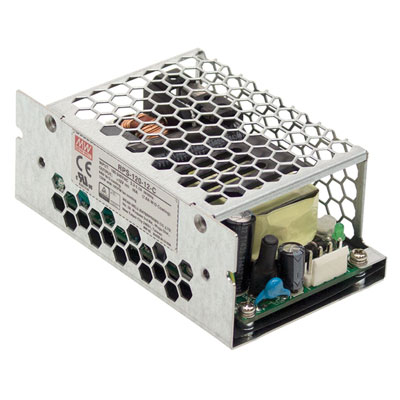

AC-DC Power Supply Single-OUT 12V 7A 84W 8Pin
* 4"x2" Minature Size
* Universal AC Input / Full Range
* Medical Safety Approvals 2 x MOPP
* Suitable for BF Application with Appropriate System Consideration
* EMI Class B for Both Class I and Class II
* Low Leakage Current
* No Load Power Consumption
* High Efficiency up to 91%
* Protections: Short Circuit / Overload / Over Voltage / Over Temperature
* Cooling by Free Air Convectin for 84W and 120W with 10CFM Forced Air
* LED Indicator for Power On
* 3 Year Factory Warranty
额定电流 11.7 A
额定功率 120 W
输出接口数 1
输出电压 12 V
输出电流 10 A
输出功率 120 W
隔离电压 4 kV
输入电压DC Max 370 V
输入电压DC Min 113 V
输入电压AC Max 264 V
输入电压AC Min 80 V
输出电流Max 7 A
输入电流Min 2.1 A
输出功率Max 84 W
工作温度Max 70 ℃
工作温度Min -30 ℃
电源电压 80.264VAC, 113.370VDC
输入电压 80VAC ~ 264VAC, 113VDC ~ 370VDC
引脚数 8
长度 101.6 mm
宽度 50.8 mm
高度 29 mm
重量 240 g
工作温度 -30℃ ~ 70℃
产品生命周期 Active
RoHS标准 RoHS Compliant
含铅标准 Lead free
ECCN代码 EAR99
