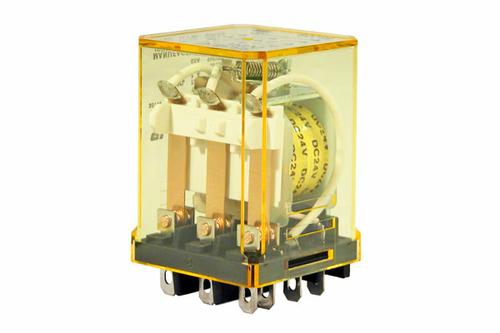

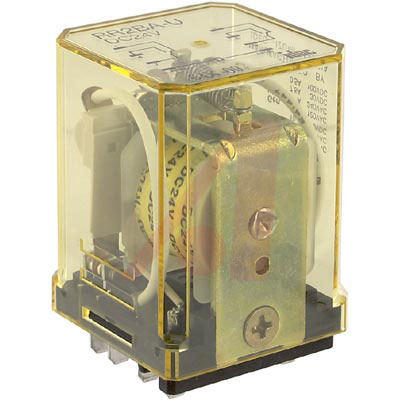

RR2BA-UDC24V

24VDC 10A 无锁存

10 A Relay, 24 VAC Coil Voltage, Silver Alloy Material

UL recognized, CSA certified, CE marked pin and blade type terminals and 10 amp capacity. Specifications

.

* . Contact Material:** Silver. Contact** Resistance:** 30 MΩ max. initial value.** Power Consumption:** AC — approx. 3 VA 50 Hz, 2.5 VA 60 Hz; DC — approx. 1.5 W. Operating** Frequency:** 1800 operations/hour. Temperature** Rise:** Coil — 153°F 85°C max.; Contact — 117°F 65°C max. Operating** Temperature:** -22°F to +158°F -30°C to+70°C.** Horsepower Rating:** 1/4 HP at 120 VAC; 1/3 HP at 240 VAC. Maximum** Continuous Applied Voltage at 68°F:** 110% of rated voltage without overheating. Minimum** Operate Voltage at 68°F:** 80% of rated voltage. Contact** Rating UL:** 10 A resistive, 7 A inductive at 240 VAC; 10 A resistive, 7 A inductive at 30 VDC.

DIN rail, surface, and panel mount sockets are available for a wide variety of mounting applications.
