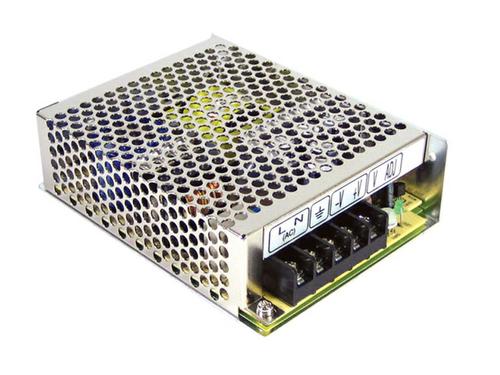

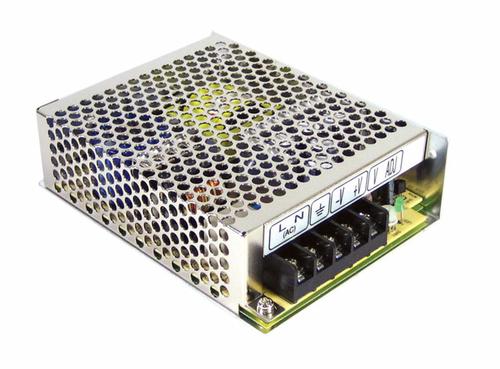

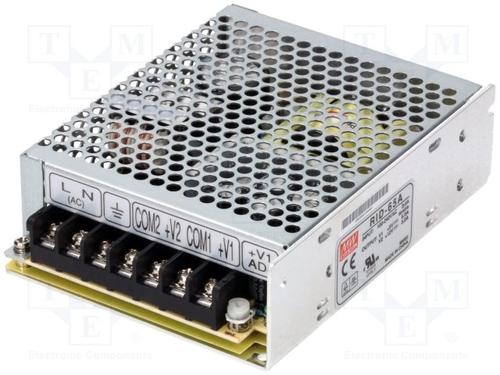

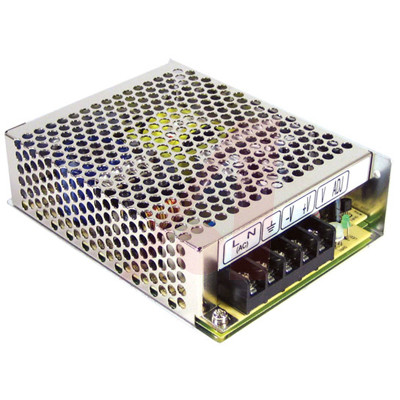

AC-DC Power Supply Dual-OUT 5V/24V 8A/3A 68W 7Pin
AC/DC Power Supply Dual-OUT 5V/24V 8A/3A 68W 7-Pin
贸泽:
Mean Well
艾睿:
AC/DC Power Supply Dual-OUT 5V/24V 8A/3A 68W 7-Pin
Allied Electronics:
Power Supply; AC-DC; Dual; 65W; 5V, 24V; 88-264V In
Jameco:
68W Dual Output Regulated Switching Power Supply Channel 1 5 Volts @ 4 Amps
安富利:
AC/DC Power Supply Dual-OUT 5V/24V 8A/3A 68W
TME:
Pwr sup.unit: switched-mode; modular; 68W; 5VDC; 24VDC; 40.3÷8A
MASTER:
AC/DC Power Supply - 2 Outputs - 5V/24V@8A/3A - 68W
Online Components:
AC/DC Power Supply Dual-OUT 5V/24V 8A/3A 68W 7-Pin
Electro Sonic:
AC/DC Power Supply - 2 Outputs - 5V/24V@8A/3A - 68W
额定功率 68 W
输出接口数 2
输出电压 5 VDC
输出电流 8 A
输出功率 68 W
输入电压DC Max 373 V
输入电压DC Min 125 V
输入电压AC Max 264 V
输入电压AC Min 88 V
额定电流Max 2 A
输入电流Min 2 A
输出功率Max 68 W
工作温度Max 70 ℃
工作温度Min -25 ℃
电源电压 88.264VAC, 125.373VDC
引脚数 7
颜色 Silver
重量 440 g
工作温度 -25℃ ~ 70℃
RoHS标准 RoHS Compliant
ECCN代码 EAR99
HTS代码 8504409510
