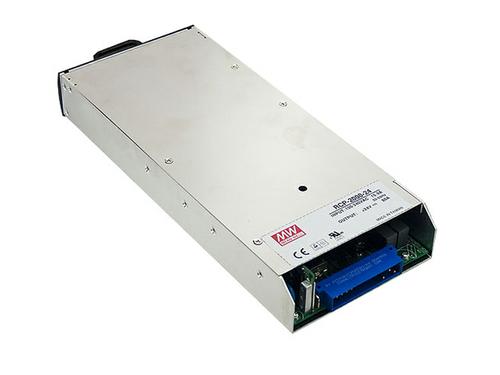

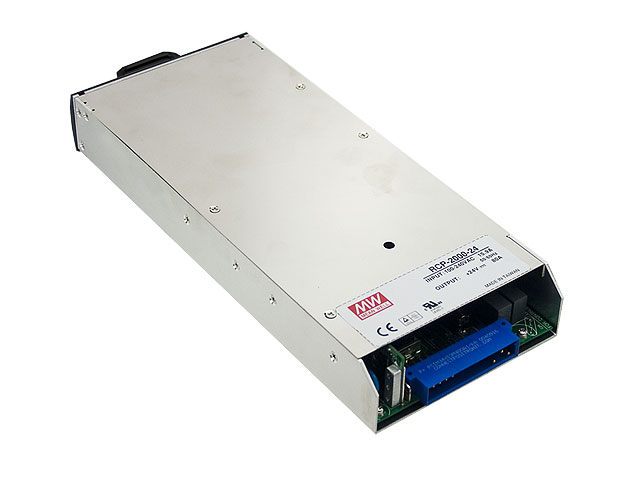

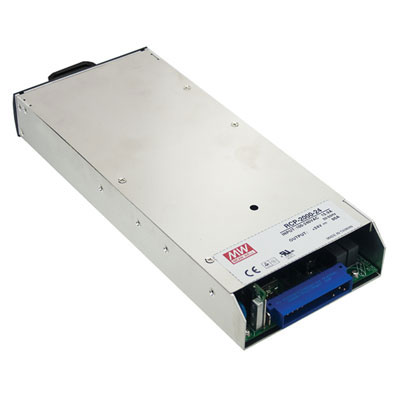

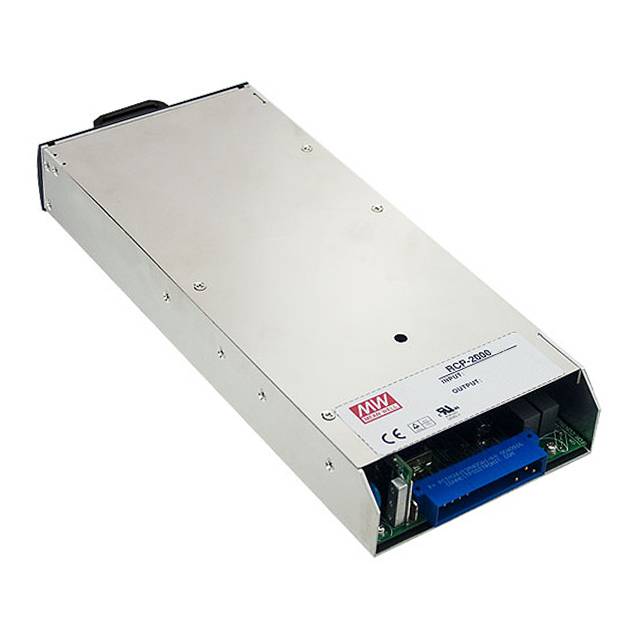

AC/DC前端电源PSU, ITE, 1输出, 固定/可调, 1.2 kW, 12 V, 100 A, RCP-2000 Series
Universal AC input / Full range
Built-in 5 V/0.3 A, 12 V/0.8 A auxiliary power
Built-in active PFC function, PF greater than 0.98
High efficiency up to 92 percent
Withstand 300 VAC surge input for 5 seconds
Protections: Short circuit / Overload / Over voltage / Over temperature
High Power density 21.4 W/inch3
Forced air cooling by built-in DC fan with fan speed control
Low profile:1U height
Remote control for single unit
Built-in remote sense function
Output voltage trimming function
Hot-swap operation
PMBus communication serial
AC OK, DC OK signal, fan fail, OTP alarm signal
Internal OR-ing FET
3 years warranty
额定功率 1200 W
输出接口数 1
输出电压 12 V
输出电流 100 A
输出功率 1211 W
输入电压DC Max 370 V
输入电压DC Min 127 V
输入电压AC Max 264 V
输入电压AC Min 90 V
额定电流Max 13 A
输出电流Max 100 A
输入电流Min 13 A
输出功率Max 1200 W
工作温度Max 70 ℃
工作温度Min -40 ℃
电源电压 90.264VAC, 127.370VDC
输入电压 180VAC ~ 264VAC
安装方式 Rack
引脚数 34
长度 295 mm
宽度 127 mm
高度 41 mm
重量 2 kg
工作温度 -40℃ ~ 70℃
产品生命周期 Active
制造应用 ITE（商业）
RoHS标准 RoHS Compliant
含铅标准 无铅
