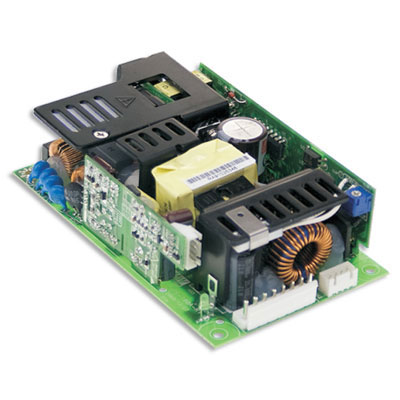

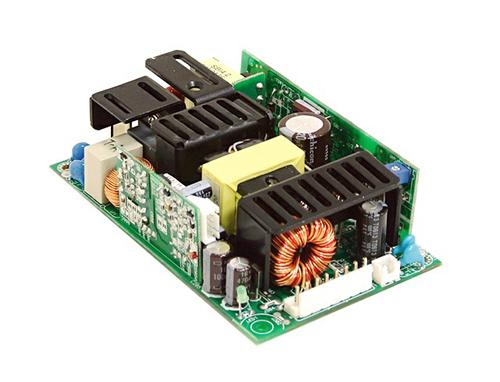

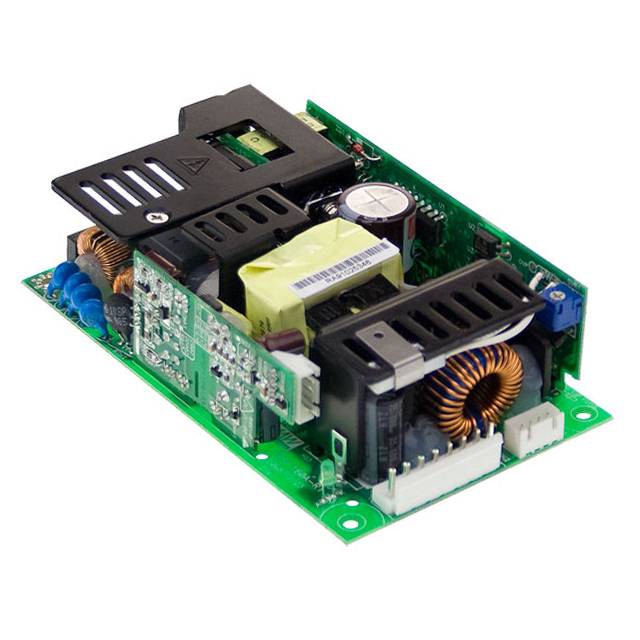

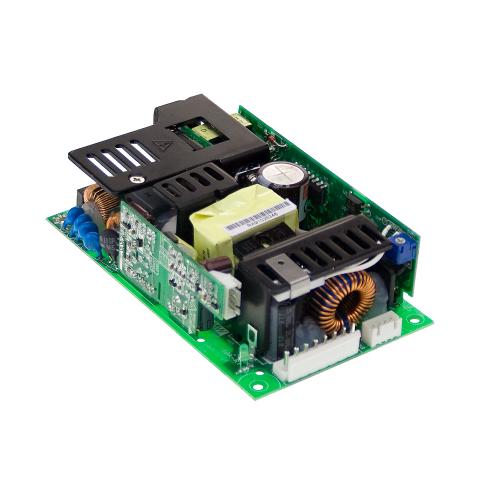

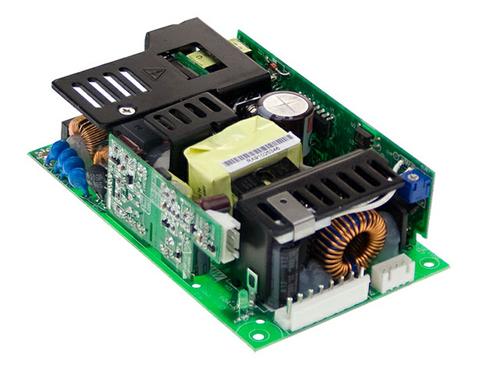

Mean Well 99W 3输出 嵌入式开关模式电源 SMPS RPT-160C, 127 → 370 V dc, 90 → 264 V ac输入
RPT-160 Series, Triple Output Power Supply 3x5inch
Miniature size 3x5 inch, high power density
High efficiency, long life and high reliability
Universal input voltage 90-264Vac, 127-370Vdc
Energy saving power supply
No load power consumption <0.5W
Medical safety approved
Low leakage current <200μA
5V 1A standby output
High operating temperature up to 70°C
Power good and fail safe signal output
Adjustable output voltage 4.75 to 5.5V main output
Power factor correction to EN 61000-3-2
EMC compliance to EN55011, EN 55022 Class B
Short circuit, overload over-voltage and over-temperature protection
Extra peak load rating with 20.5CFM forced air cooling
### 注
De-rating above 40°C for free air convection, 50°C for forced air cooling with 20.5CFM. Output current and power stated for free air convection.
MTBF to MIL-HDBK-217F 25°C.
### 标准
EN 60601-1, UL 60601-1
### 认可
TUV, CB, UL recognised component for Canada & US
额定功率 143 W
输出接口数 3
输出电压 5 VDC
输出电流 14 A
输出功率 99 W
输入电压DC Max 370 V
输入电压DC Min 127 V
输入电压AC Max 264 V
输入电压AC Min 90 V
输入电流Min 1.8 A
输出功率Max 99 W
工作温度Max 70 ℃
工作温度Min -20 ℃
电源电压 90.264VAC, 127.370VDC
输入电压 90VAC ~ 264VAC, 127VDC ~ 370VDC
安装方式 Chassis
引脚数 16
封装 开放式
长度 127 mm
宽度 76.2 mm
封装 开放式
重量 330 g
工作温度 -20℃ ~ 70℃
产品生命周期 Active
制造应用 医用型
RoHS标准 RoHS Compliant
含铅标准 无铅
ECCN代码 EAR99
HTS代码 8504409520
