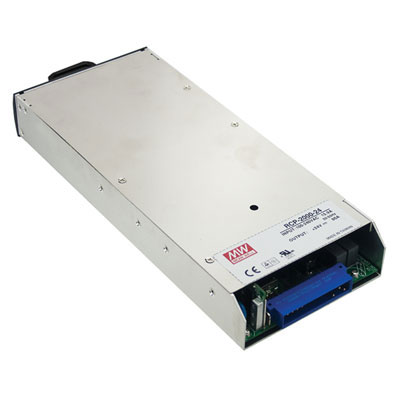

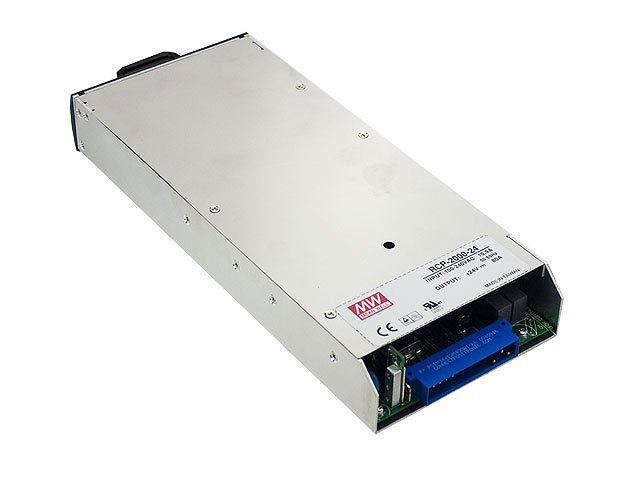

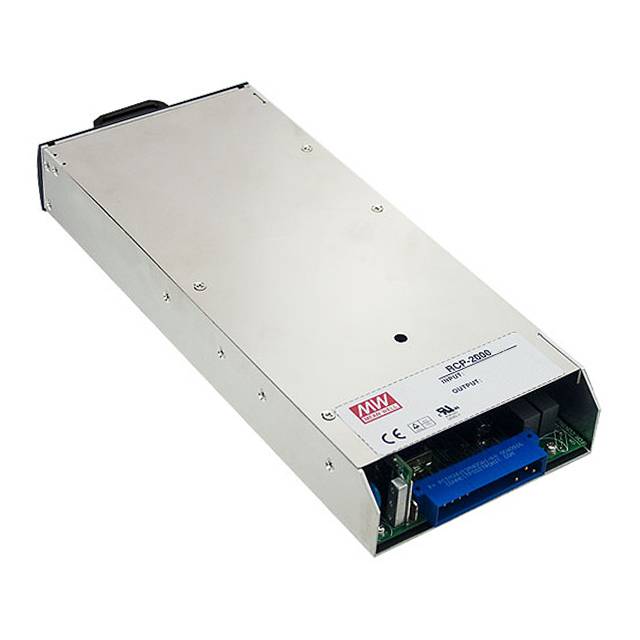

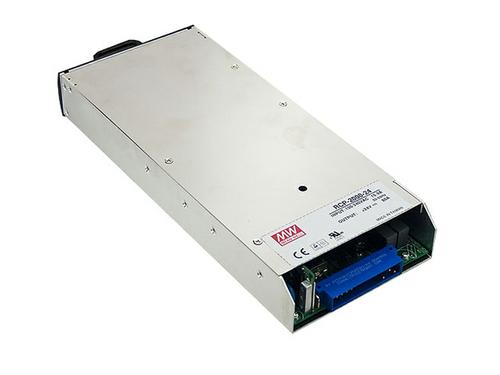

AC/DC前端电源PSU, ITE, 1输出, 固定/可调, 2.016 kW, 48 V, 42 A, RCP-2000 Series
* Universal AC input / Full range Withstand 300VAC surge input for 5 seconds * Built-in active PFC function * High efficiency up to 92% * Forced air cooling by built-in DC fan * Output voltage programmable * Built-in OR-ing FET, support hot swap hot plug * Active current sharing up to 6000W for one 19" rack shelf * Built-in I2 C interface, PMBus protocol * Protections: Short circuit / Overload / Over voltage / Over temperature * Redundant power system * Optional conformal coating * Electric vehicle charger system * 5 years warranty
额定功率 2016 W
输出接口数 1
输出电压 48 V
输出电流 42 A
输出功率 2016 W
输入电压DC Max 370 V
输入电压DC Min 127 V
输入电压AC Max 264 V
输入电压AC Min 90 V
额定电流Max 16 A
输出电流Max 42 A
输入电流Min 16 A
输出功率Max 2016 W
工作温度Max 70 ℃
工作温度Min -40 ℃
电源电压 90.264VAC, 127.370VDC
输入电压 90VAC ~ 264VAC, 127VDC ~ 370VDC
安装方式 Rack
引脚数 34
长度 11.61 in
宽度 5 in
高度 1.61 in
重量 2 kg
工作温度 -40℃ ~ 70℃
产品生命周期 Active
制造应用 ITE（商业）
RoHS标准 RoHS Compliant
含铅标准 无铅
