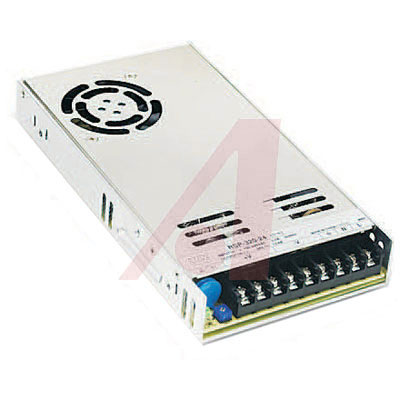

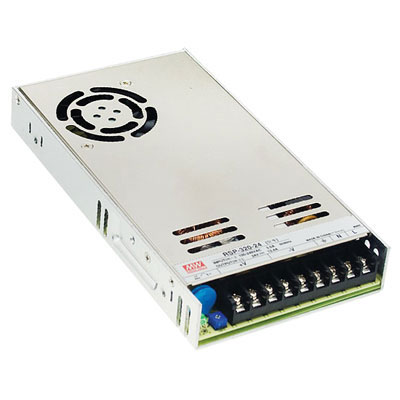

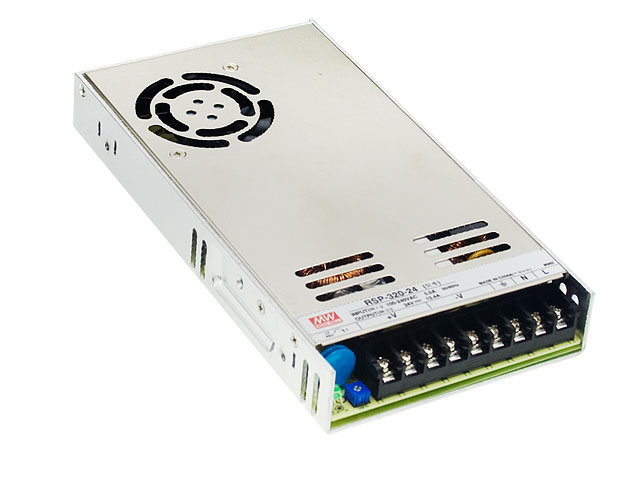

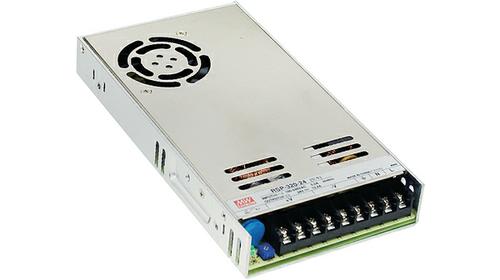

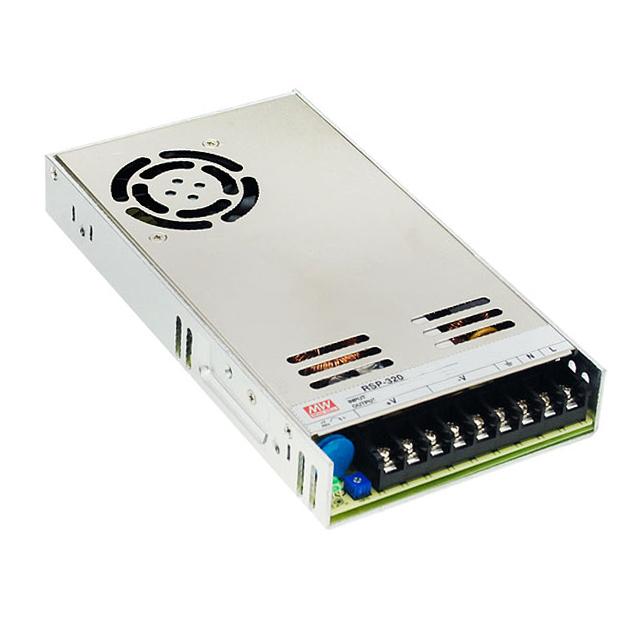

RSP-320-5

AC/DC 闭合电源 供电单元, ITE, 1 输出, 300 W, 5 V, 60 A

**Features:

* **Universal AC Input/Full Range

* AC Input Active Surge Current Limiting on RSP-200 Thru RSP-3000

* Built-In 5 V/0.5 A Auxiliary Power on RSP-1000

* Built-In 12 V/0.1 A Auxiliary Power on RSP-750, RSP-1500, RSP-2400 and RSP-3000

* Built-In 12 V/0.8 A and 5 V/0.3 A Auxiliary Power on RSP-2000

* Built-In Active PFC Function, PF>0.93

* Protections: Short Circuit, Overload, Over Voltage, Over Temperature

* Output Voltage Can Be Trimmed Between 40~110% of the Rated Output Voltage

* Forced Air Cooling By Built-In DC Fan on RSP-320 Thru RSP-3000

* High Power Density 10.7 W/Inch3

* Active Current Sharing on RSP-1000, RSP-1500, RSP-2400 and RSP-3000

* DC OK Signal on RSP-750 Thru RSP-3000

* Built-In Remote ON-OFF Control on RSP-75, RSP-100 and RSP-500 Thru RSP-3000

* Built-In Remote Sense Function on RSP-500 Thru RSP-3000

* 3-Year Factory Warranty
