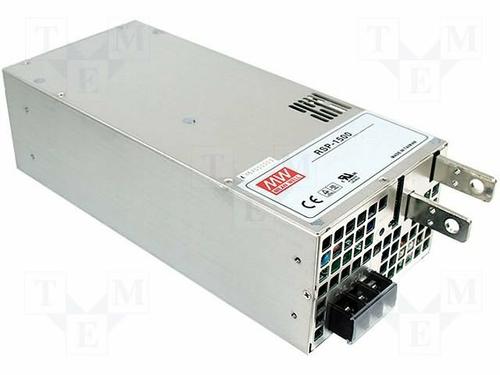

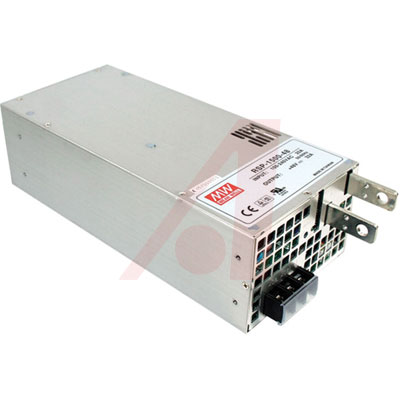

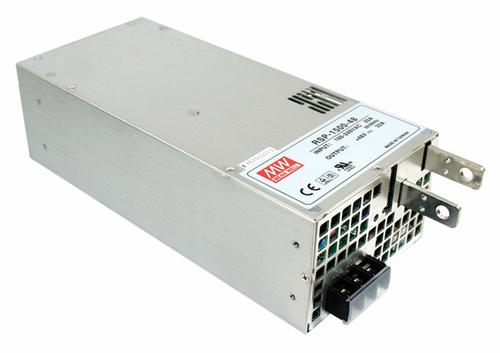

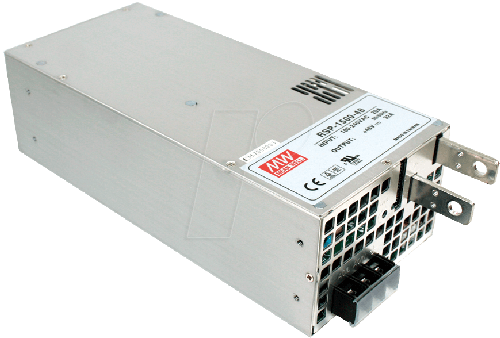

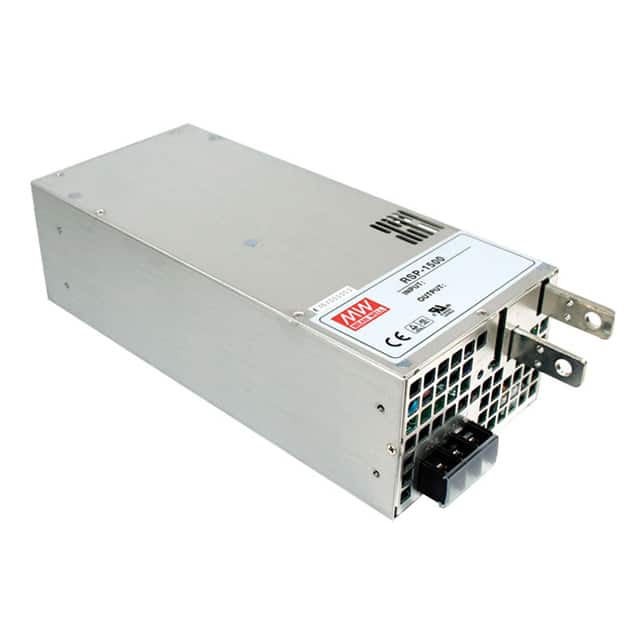

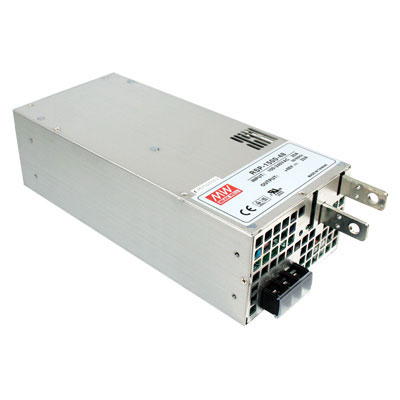

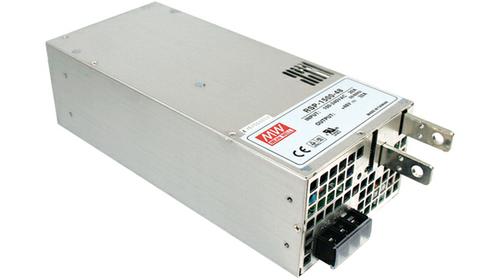

RSP-1500 系列 1500 W 单输出 12 V AC/DC 开关电源
RSP-1500 系列,通用输入,单输出
高效、长寿命和高可靠性

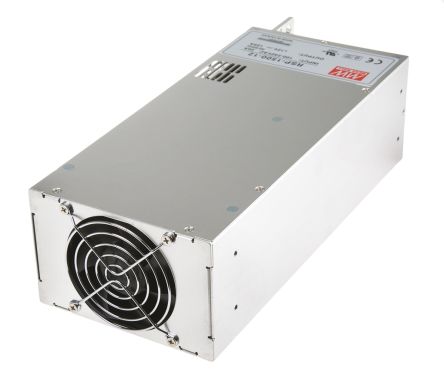

内置风扇
远程感应
远程开/关控制
警告信号输出
电流共享高达 6000W 3+1
通电 LED 指示灯
易于安装 - 输入螺钉接线端子,输出 2xM8 螺栓(提供)
可调节输出电压 ±10%
功率因数校正,符合 EN 61000-3-2
EMC 符合 EN 55022
短路、过载、过压和过温保护
### 注
温度高于 45°C 12V、50°C 24, 27, 48V 时,每 °C 输出额定值降低 2%。 深度不包括端子块。
### 标准
EN 60950, UL 60950
### 认可
UL 认可,TUV,CB
欧时:
Mean Well 1.5kW 单输出 嵌入式开关模式电源 SMPS RSP-1500-12
得捷:
AC/DC CONVERTER 12V 1500W
e络盟:
AC/DC 闭合电源 供电单元, ITE, ITE, 1 输出, 1.5 kW, 12 V, 125 A
艾睿:
Ensure optimal performance of your electronic device with the use of this RSP-1500-12 AC to DC power supply from Mean-Well USA, Inc.. It has a voltage of 12 V and maximum output power of 1500 W. This part&s;s single output can handle a current up to 125 A. This part has a minimum operating temperature of -20 °C and a maximum of 70 °C.
Allied Electronics:
Power Supply; AC-DC; 12VDC@125A, 12VDC@0.1A; 100-264V In; Enclosed; PFC; RSP Series
Jameco:
AC to DC Power Supply Single Output 12 Volt 125 Amp 1.5kw
安富利:
AC/DC Power Supply Single-OUT 12V 125A 1500W
TME:
Pwr sup.unit: switched-mode; modular; 1500W; 12VDC; 125A; 3kg; 87%
MASTER:
AC/DC Single sutput enclosed power supply - Output 12VDC single output at 125A - PFC - forced air cooling.
Online Components:
AC/DC Single sutput enclosed power supply - Output 12VDC single output at 125A - PFC - forced air cooling.
Electro Sonic:
AC/DC Single sutput enclosed power supply - Output 12VDC single output at 125A - PFC - forced air cooling.
CDI:
AC/DC 1500W 12V Single Output Power Supply, Enclosed w/ Fan
额定功率 1500 W
输出接口数 1
输出电压 12 V
输出电流 125 A
输出功率 1500 W
输入电压DC Max 370 V
输入电压DC Min 127 V
输入电压AC Max 264 V
输入电压AC Min 90 V
额定电流Max 17 A
输出电流Max 125 A
输入电流Min 17 A
输出功率Max 1500 W
工作温度Max 70 ℃
工作温度Min -20 ℃
电源电压 90.264VAC, 127.370VDC
输入电压 100VAC ~ 264VAC
引脚数 17
封装 125
长度 10.94 in
宽度 5 in
高度 3.29 in
封装 125
颜色 Silver
重量 3 kg
工作温度 -30℃ ~ 70℃
产品生命周期 Active
制造应用 ITE(商业)
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
HTS代码 8504409540
