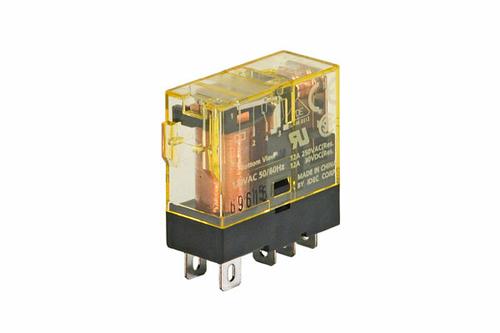

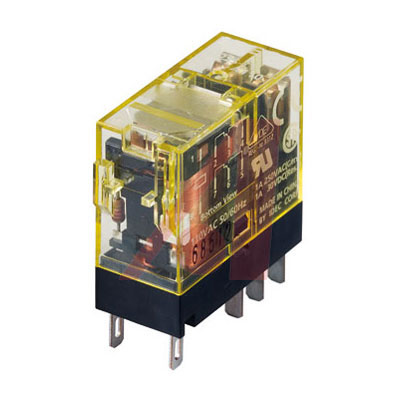

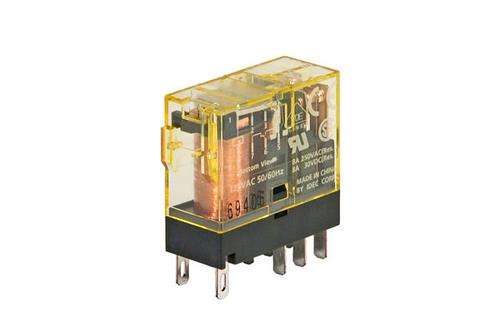

Relay; E-Mech; DPDT; Ctrl-V 105DC; 8A; 250VAC; Socket Mount; Blade; LED; RJ Series
* Compact and rugged power relays. Large switching capacity
* Compact housing only 12.7 mm wide.
* Large contact rating
RJ1 1-pole: 16A UL general use rating @250V AC
RJ2 2-pole: 8A
* Non-polarized LED indicator available on blade type. ’s unique light guide structure enables high visibility of coil status from any direction.
* The smallest width for 2-pole/bifurcated contact relay
* Excellent electrical and mechanical life.
Electrical life: 200,000 operations AC load
Mechanical life: 30 million operations AC coil
* RoHS directive compliant EU directive 2002/95/EC. Contains no lead, cadmium, mercury, hexavalent chromium, PBB or PBDE.
* Diode model:
Diode reverse withstand voltage: 1000V
* UL recognized, CSA certified, EN compliant.
