RS1215-20

RS1215-20图片1
RS1215-20图片2
RS1215-20图片3
RS1215-20图片4
RS1215-20图片5
RS1215-20图片6
RS1215-20图片7
RS1215-20概述

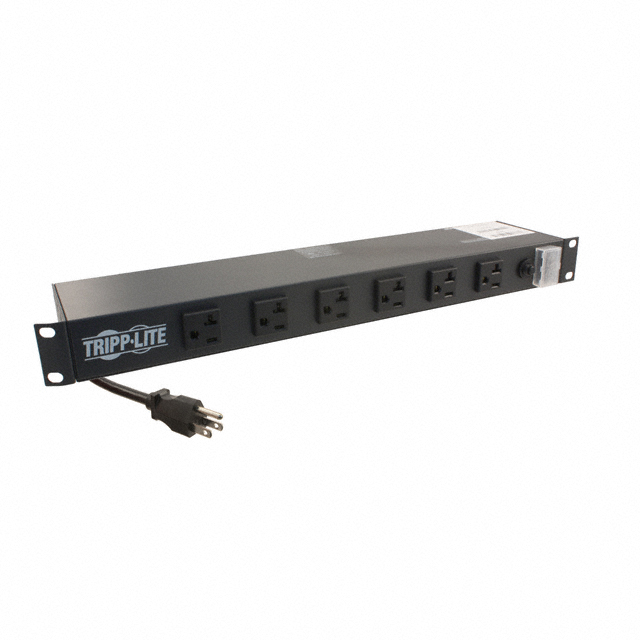

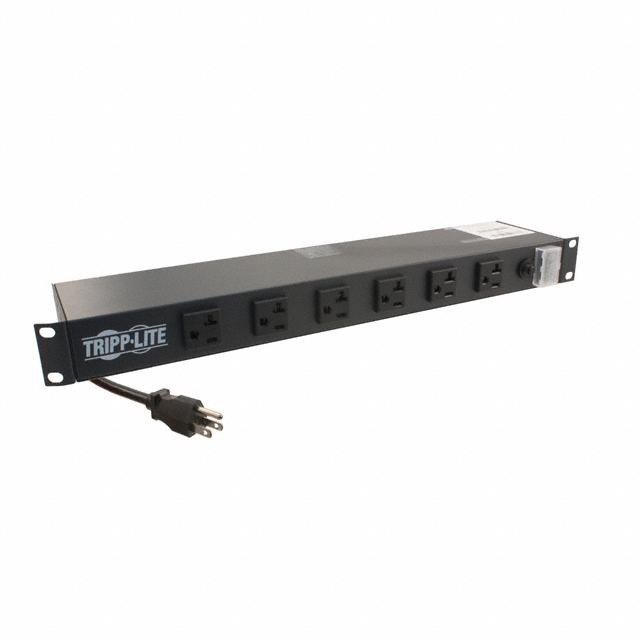

1U Rack-Mount Power Strip, 120V, 20A, 5-20P, 12Outlets 6 Front-Facing, 6-Rear-Facing 15Ft. Cord

Combine all premium features found separately in competitive models into one versatile power strip with more outlets and longer cords! Adjustable.

* More Premium Features Than the Competition Plus More Outlets and Longer Cords

* Slim 1U Housing Fits Any Standard 19 Inch Rack

* Adjustable Mounting Brackets Adapt Strip to Rackmount , Wall-Mount, or Under-Counter Applications

* Master Switch with Locking Switch Guard Eliminates Risk of Accidental Shut-Off

* Rugged All-Metal Housings for Demanding Work Environments

* Included Snap-In Covers Control Receptacle Usage

* All Models Include Circuit Breakers and Are Rated to 120 VAC, 50/60 Hz

RS1215-20中文资料参数规格
技术参数

频率 60.0 Hz

额定电流 20 A

输出电压 120 V

输出电流 ≤20.0 A

喷头数量 12

额定电压 120 VAC

输入电压 120 V

封装参数

安装方式 Rack

封装 120

外形尺寸

宽度 445 mm

高度 44.4 mm

封装 120

电缆长度 4.57 m

电源线长度 4.57 m

物理参数

外壳材质 Metal

其他

产品生命周期 Active

包装方式 Bulk

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

海关信息

ECCN代码 EAR99

数据手册

在线购买RS1215-20
型号: RS1215-20
制造商: Tripp-Lite
描述:1U Rack-Mount Power Strip, 120V, 20A, 5-20P, 12Outlets 6 Front-Facing, 6-Rear-Facing 15Ft. Cord
