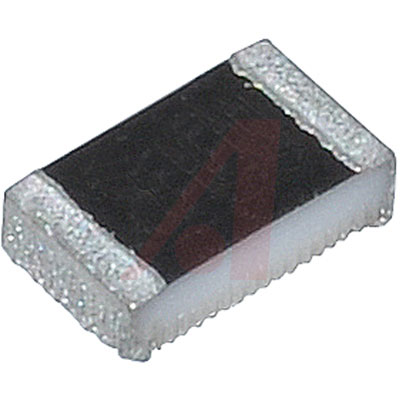

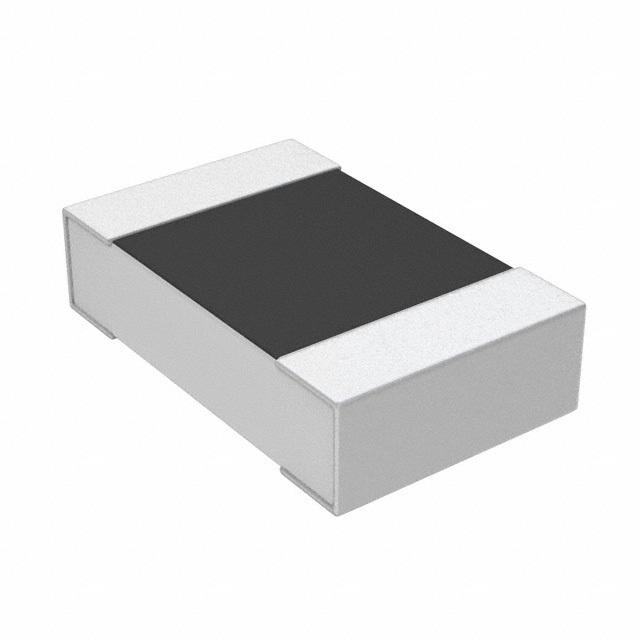

RN73C2A3K16BTG

薄膜电阻器 - SMD RN 0805 3K16 0.1% 10PPM CUT LENGTH

The RN73 Series is a high stability precision chip resistor range offering various power dissipations relating to chip size, TCR"s down to 5 ppm/°C and resistive tolerances to 0.01%. The resistor is produced with three sputtered layers giving optimum performance. Values are restricted to the E96 and E24 value grids. The RN73 has accurate and uniform physical dimensions to facilitate placement.

**Features:**

* High Precision — TCR 5 ppm/°C and 10 ppm/°C

* Tolerance Down to 0.01%

* Thin Film Nichrome

* Choice of Packages

* Stable High Frequency Performance

* Temperature Range –55°C to +125°C
