RN1102F

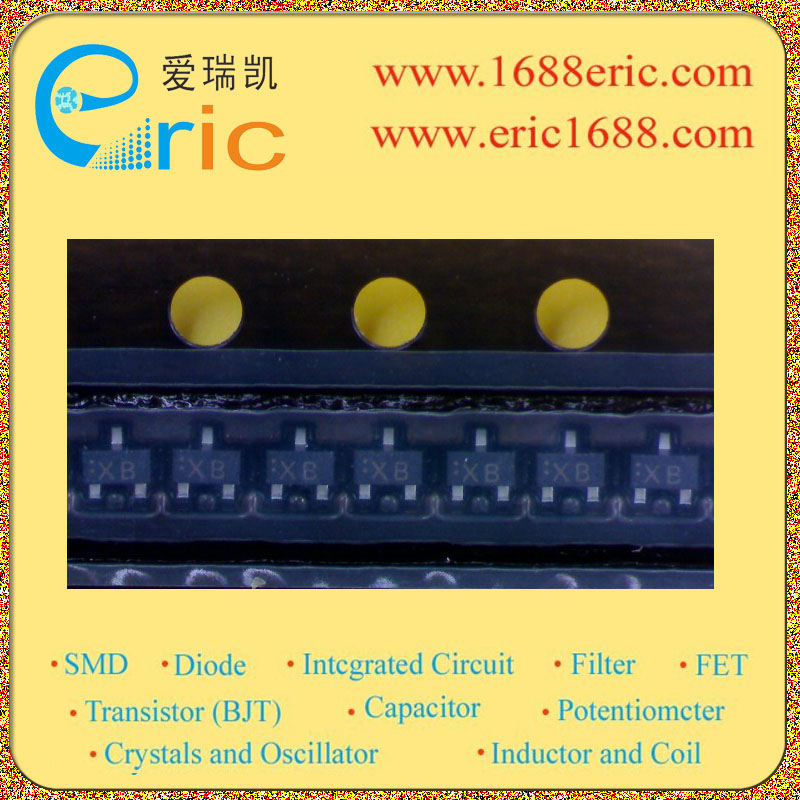

RN1102F 带阻尼NPN三极管 50V 0.1A R1=R2=10KΩ HEF=50 250MHZ SOT523 代码 XB

集电极-基极反向击穿电压VBRCBO Collector-Base VoltageVCBO | 50V \---|--- 集电极-发射极反向击穿电压VBRCEO Collector-Emitter VoltageVCEO | 50V 集电极连续输出电流IC Collector CurrentIC | 0.1A 基极输入电阻R1 Input ResistanceR1 | 10KΩ 基极-发射极输入电阻R2 Base-Emitter ResistanceR2 | 10KΩ 电阻比R1/R2 Resistance Ratio | 1 直流电流增益hFE DC Current GainhFE | 50 截止频率fT Transtion FrequencyfT | 250MHZ 耗散功率Pc Power dissipation | 0.1W 描述与应用 Description & Applications | 开关,逆变器电路,接口电路 　　和驱动电路应用

Chip1Stop:
Trans Digital BJT NPN 50V 100mA 3-Pin ESM

Win Source:
SWITCHING ,INVERTER CIRCUIT,INTERFACE CIRCUIT AND DRIVER CIRCUIT APPLICATIONS
