Straight female N plugs with cable glandThe screw coupling of this connector ensures good HF performance. High permissible power. Recommended operating frequency | -  50 Ω: 0 → 11 GHz -  75 Ω:  0 → 1.5 GHz ---|--- R.O.S.: | 1.3 max. Insertion losses: | 0.15 dB/m at 10 GHz H.F. leakages: | –90 dB min. 2 → 3 GHz Insulation resistance: | Min. 5000 MΩ Max. service voltage: | 850 V eff. on the ground Endurance: | 500 operations Operating temperature: | –55 °C → +155 °C Materials | -  body:  BBR brass -  central contact:  gold-plated beryllium-bronze -  insulation:  PTFE -  seals:  silicone elastomer ref. | Ø mm | Stock |   ---|---|---|--- Radiall | cable | no. | cable **50 Ω** |   |   |   R 161 206 | 5 | 295-6775 | RG 58 C/U; RG 141 A/U; RG 142 B/U R 161 220 | 10 / 11 | 295-6781 | RG 62 B/U; RG 213/U; RG 214/U **75 Ω** |   |   |   R 162 217 | 10 / 11 | 295-6797 | RG 216; RG 12 A/U ### RadiallBBR Bronze Blanc Radiall，镀白青铜 50Ω ’N’ 连接器，满足高频率通信应用的可靠低损耗性能要求。 低互调 非磁性和防腐蚀 防刮擦与耐磨性 频率范围 | 直流到 11GHz |   ---|---|--- VSWR（典型） | 1GHz | 5GHz 直向 RG58 | 1.05 | 1.1 直向 RG213/214 | 1.04 | 1.09 90° RG58 | 1.04 | 1018 90° RG213/214 | 1.04 | 1.2 绝缘电阻（最小） | 5000MΩ |   中心触点电阻（最大） | 1.5mΩ |   **工作电压** |   |   RG58 | 850V 交流 |   RG213/214 | 1400V 交流 |   **耐电压** |   |   RG58 | 1500V 交流 |   RG213/214 | 2500V 交流 |   **材料** |   |   主体 | 黄铜 |   **触点** | 1GHz |   公 | 黄铜 |   母 | 铍铜 |   绝缘体 | PTFE |   **电镀** |   |   主体 | 白青铜 |   触点 | 金 |   压接工具 --- **电缆类型** | **电缆组** | **使用压接工具** RG58 | A | 456-431, 453-870 RG213 | T | 405-304 RG214 | W | 405-304

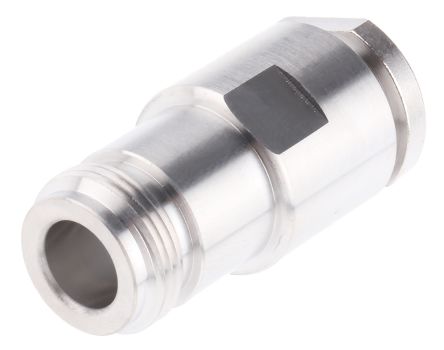

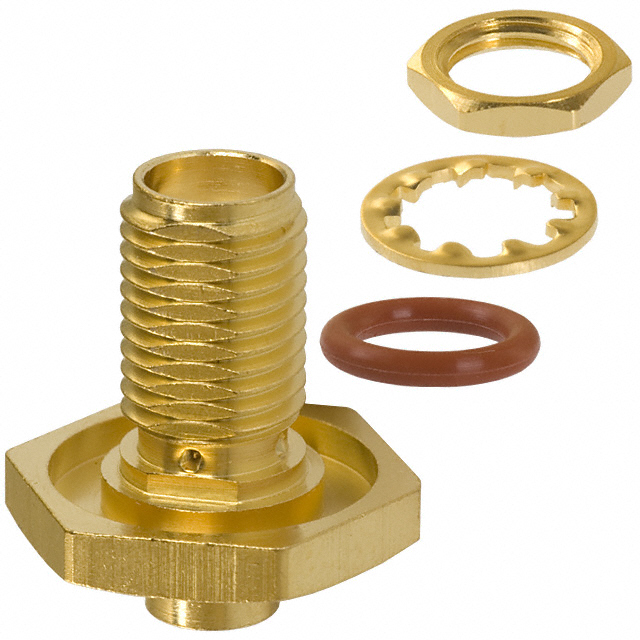

Straight female N plugs with cable gland

The screw coupling of this connector ensures good HF performance.

High permissible power.

Recommended operating frequency | -  50 Ω: 0 → 11 GHz

-  75 Ω:  0 → 1.5 GHz

---|---

R.O.S.: | 1.3 max.

Insertion losses: | 0.15 dB/m at 10 GHz

H.F. leakages: | –90 dB min. 2 → 3 GHz

Insulation resistance: | Min. 5000 MΩ

Max. service voltage: | 850 V eff. on the ground

Endurance: | 500 operations

Operating temperature: | –55 °C → +155 °C

Materials | -  body:  BBR brass

-  central contact:  gold-plated beryllium-bronze

-  insulation:  PTFE

-  seals:  silicone elastomer

ref. | Ø mm | Stock |

---|---|---|---

| cable | no. | cable

**50 Ω** |   |   |

R 161 206 | 5 | 295-6775 | RG 58 C/U; RG 141 A/U; RG 142 B/U

R 161 220 | 10 / 11 | 295-6781 | RG 62 B/U; RG 213/U; RG 214/U

**75 Ω** |   |   |

R 162 217 | 10 / 11 | 295-6797 | RG 216; RG 12 A/U
