Straight male TNC crimp plugsStraight male TNC crimp plugs. The screw coupling on this connector ensures better HF performance than a BNC connector. Impedance: | 50 Ω ---|--- Recommended operating frequency: | 0 → 11 GHz R.O.S.: | 1.3 max. Insertion losses: | 0.18 dB/m at 9 GHz H.F. leakages: | –60 dB min. 2 → 3 GHz Insulation resistance: | Min. 5000 MΩ Max. service voltage: | 1500 V eff. on the ground Endurance: | 500 operations Operating temperature: | –65 °C → +165 °C Materials | \- body: nickel-plated brass in accordance with QQ-B-626 \- central contact: gold-plated brass in accordance with QQ-B-626 \- insulation: PTFE \- seals: silicone elastomer ref. | Ø mm | Stock | ---|---|---|--- Radiall | cable | no. | cable R 143 075 | 2.6 | 295-8333 | RG 174 A/U; RG 188 A/U R 143 082 | 5 | 295-8349 | RG 142 B/U ### Radiall 镀镍 TNC### 镀镍 - Radiall螺钉耦合连接器，HF 性能高于同类的 BNC 技术参数 --- 推荐操作 频率： | 50Ω: 0-11GHz | 75Ω: 0-1.5GHz R.O.S： | 最大 1.30 插入损耗： | 0.18dB 至 9GHz HF 泄漏： | 从 2 至 3GHz 时最低为 -60dB 绝缘电阻： | 最小 5000MΩ 最大工作电压： | 500V rms（接地时） 耐受性： | 500 次操作 温度范围： | -65°C 至 +165°C **材料** | 主体： | 镀镍 QQ-B-626 型，黄铜 中心触点： | 镀镍 QQ-B-626 型，黄铜 绝缘体： | PTFE 衬垫： | 硅树脂橡胶

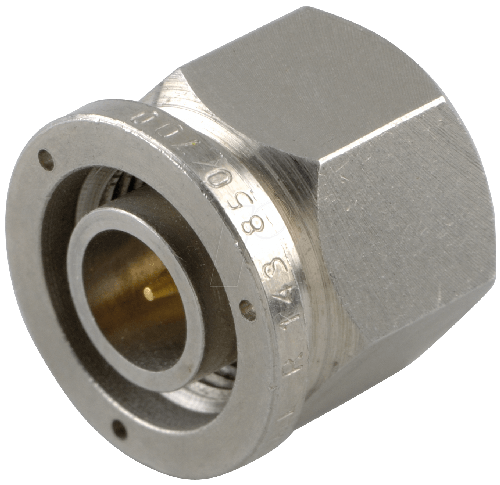

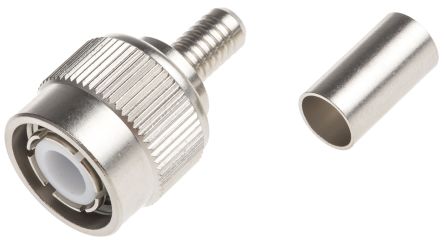

Straight male TNC crimp plugs
Straight male TNC crimp plugs.
The screw coupling on this connector ensures better HF performance than a BNC connector.
### 镀镍 -
螺钉耦合，HF 性能高于同类的 BNC
欧时:
TNC STRT CRIMP PLG RG142
得捷:
TNC / STRAIGHT PLUG CRIMP TYPE C
ICbanQ:
Radiall RF Connectors / Coaxial Connectors TNC M STG FX CR 5/50S
