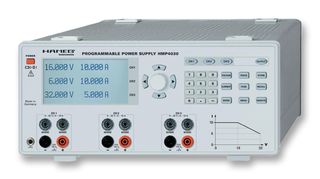

R&S HMP4030

R&S HMP4030图片1
R&S HMP4030图片2
R&S HMP4030概述

台式电源, 可编程, 3输出, 0 V, 32 V, 10 A

The HMP4030 is a high-performance programmable power supply. With advanced parallel and series operation offering: simultaneous switching on/off of active Channels via "Output" button, common voltage- and current control using tracking mode individual channel linking, individual mapping of Channels which shall be affected by FuseLink overcurrent protection switch-off and all Channels galvanically isolated from each other and the protective earth. The HMP series offers a reliable and rackmountable power supply with various input and output peripherals.

.
Low residual ripple due to linear post-regulators
.
Real-time voltage, current and watt values
.
FuseLink electronic fuse freely combinable for all channels
.
FuseDelay tuneable up to 250 ms
.
EasyArb function directly programmable at the device
.
PC software free of charge to easily generate user-defined waveforms
.
Independently adjustable over-voltage protection OVP for each channel
.
Advanced parallel- and serial operation through V/I tracking
.
Front connectors: 4 mm safety sockets
.
Rear connectors for all channels including SENSE
.
Galvanically isolated, earth-free and short circuit protected output channels
.
Optional RS-232/USB dual interface and GPIB Interface HO730 and HO740
R&S HMP4030中文资料参数规格
技术参数

额定功率 384 W

输出接口数 3

输出电压Max 32 V

输出电压Min 0 V

输出电流Max 10 A

输出电流Min 0 A

电源电压Max 230 VAC

电源电压Min 115 VAC

符合标准

RoHS标准 Non-Compliant

数据手册

在线购买R&S HMP4030
型号: R&S HMP4030
制造商: Rohde & Schwarz
描述:台式电源, 可编程, 3输出, 0 V, 32 V, 10 A
替代型号R&S HMP4030
型号/品牌 代替类型 替代型号对比

R&S HMP4030

Rohde & Schwarz

当前型号

当前型号

R&S HMP4040

Rohde & Schwarz

功能相似

R&S HMP4030和R&S HMP4040的区别

R&S HMP2030

Rohde & Schwarz

功能相似

R&S HMP4030和R&S HMP2030的区别
