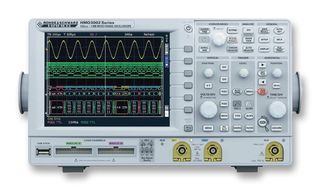

R&S HMO3052

ROHDE & SCHWARZ R&S HMO3052 Oscilloscope, HMO Series, 2 Analogue, 16 Digital, 500MHz, 4GSPS, 8 Mpts, 700 ps

Systems that are constantly becoming faster and more complex lead to ever higher demands on the required measurement technology. The new HAMEG oscilloscope HMO3052 offers the solution for current requirements in regards to bandwidth, sampling rate and memory depth. Its bandwidth of up to 500 MHz allows the Instrument to set a new milestone in the development of high-performance mixed-signal oscilloscopes at an attractive price.

.

Trigger modes: slope A/B, pulse width, video, logic, serial buses optional, hold-off

.

4GSa/s real time, low noise flash A/D converter

.

28 auto-measurement parameters plus statistics, formula editor, ratio cursor

.

6-digit hardware counter

.

Real-time FFT dBm, dBV, Vrms, up to 64 kPts

.

Pass/fail test based on masks

.

Automatically or manually adjustable memory depth

.

Vertical sensitivity up to 1 mV/div

.

Display: 12 div. x-axis, 20 div. y-axis Virtual Screen

.

Automatic search for user-defined events
