REF6230IDGKR概述

具有集成缓冲器和使能引脚的 3V、3ppm/°C 高精度电压基准 8-VSSOP -40 to 125

The voltage references in the REF6000 family have an integrated low output impedance buffer that enables the user to directly drive the reference REF pin of precision data converters, while preserving linearity, distortion, and noise performance. Most precision SAR and delta-sigma analog-to-digital converters ADCs, switch binary-weighted capacitors onto the REF pin during the conversion process. In order to support this dynamic load, the output of the voltage reference must be buffered with a low-output impedance, high-bandwidth buffer. The REF6000 family devices are well suited, but not limited, to drive the REF pin of the ADS88xx family of SAR ADCs, and ADS127xx family of delta-sigma ADCs, as well as precision digital-to-analog converters DACs.

The REF6000 family of is able to maintain an output voltage within 1LSB 18-bit with minimal droop, even during the first conversion while driving the REF pin of the ADS8881. This feature is useful in burst-mode, event-triggered, equivalent-time sampling, and variable-sampling-rate data-acquisition systems. The REF62xx variants of REF6000 family specify a maximum temperature drift of just 3 ppm/°C and initial accuracy of 0.05% for both the voltage reference and the low output impedance buffer combined. For various temperature drift options in REF6000 family, see the _Device Comparison Table_.

REF6230IDGKR中文资料参数规格
技术参数

容差 ±0.05 %

输出电压 3 V

输出电流 4 mA

供电电流 1.1 mA

输入电压Max 6 V

输出电压Max 3 V

输出电压Min 3 V

输出电流Max 4 mA

工作温度Max 125 ℃

工作温度Min 40 ℃

输入电压 3.25V ~ 5.5V

封装参数

安装方式 Surface Mount

引脚数 8

封装 VSSOP-8

外形尺寸

高度 0.95 mm

封装 VSSOP-8

物理参数

工作温度 0℃ ~ 70℃ TA

温度系数 ±3 ppm/℃

其他

产品生命周期 Active

包装方式 Tape & Reel TR

符合标准

RoHS标准 RoHS Compliant

含铅标准 无铅

数据手册

REF6230IDGKR引脚图与封装图
REF6230IDGKR引脚图
REF6230IDGKR封装图

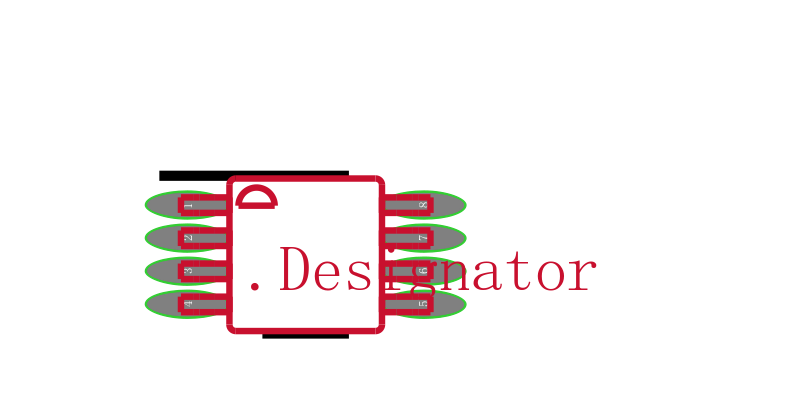

REF6230IDGKR封装焊盘图
在线购买REF6230IDGKR
型号: REF6230IDGKR
制造商: TI 德州仪器
描述:具有集成缓冲器和使能引脚的 3V、3ppm/°C 高精度电压基准 8-VSSOP -40 to 125
