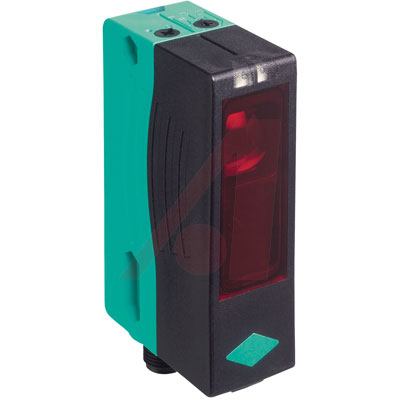

Sensor; 1 SPDT Relay; Diffuse Mode Sensing Mode; Photoelectric; 20mm to 2m
扩散 光学传感器 0.787" ~ 78.740"（20mm ~ 2m） 亮光/暗光
Allied Electronics:
Sensor; 1 SPDT Relay; Diffuse Mode Sensing Mode; Photoelectric; 20 mm to 2 m
工作温度 -40℉ ~ 140℉
Alternate Mfr Part Number 134133
Body Style Rectangular
Brand/Series 28 Series
Dimensions 54.3mm L x 88mm H x 25.8mm W
Function Proximity
Indicator LED
IP Rating IP67
Light Source Infrared LED
Material, Body ABS
Material, Lens Plastic
Mounting Type Dovetail Clamp
Output Relay, SPDT
Primary Type Photoelectric Sensor
Range, Measurement 2 m
Response Time 20 ms Max.
Sensing Mode Diffuse
Standards UL Listed, CSA Certified, CE Marked
Supply Voltage 12-240 VAC/VDC
Technology Photoelectric
Temperature, Operating -40 to +140 °F
Termination QC Tabs
Type Diffuse
Weight 3.5 Oz.
RoHS标准 RoHS Compliant
