RN55E2001FB14

RN55E2001FB14图片1
RN55E2001FB14图片2
RN55E2001FB14概述

Res Metal Film 2KΩ 1% 0.1W1/10W ±25ppm/℃ Conformal AXL Thru-Hole Bulk

The fixed single through-hole resistor, developed by Vishay, can offer you a more traditional mounting method for resistors in your circuit. This product has a resistance value of 2K Ohm. This dependable part has a power rating of 0.1 1/10 W. Its temperature coefficient is ±25 ppm/°C. This product comes packaged in bulk, so the parts will be stored loosely. It has a tolerance of 1%. This product is 6.1 mm long. This part has an operating temperature of -65 to 175 °C. The RN55E2001FB14 part has an axial termination style. This device utilizes metal film technology.

RN55E2001FB14中文资料参数规格
技术参数

额定功率 0.1 W

电阻 2 KΩ

阻值偏差 ±1 %

封装参数

安装方式 Axial

封装 Axial

外形尺寸

长度 7.37 mm

宽度 2.29 mm

封装 Axial

其他

包装方式 Bulk

符合标准

RoHS标准 Non-Compliant

含铅标准 Contains Lead

数据手册

RN55E2001FB14引脚图与封装图
RN55E2001FB14引脚图

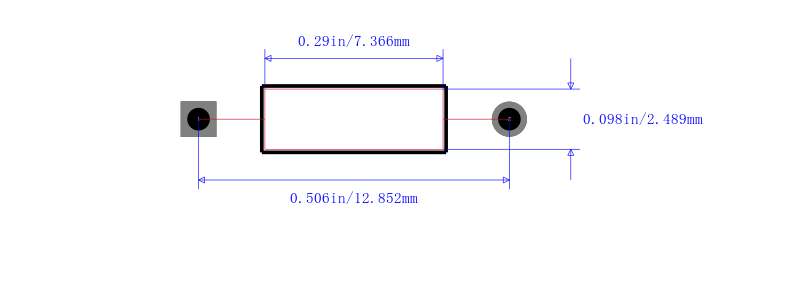

RN55E2001FB14封装图

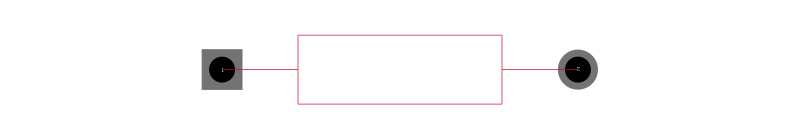

RN55E2001FB14封装焊盘图
在线购买RN55E2001FB14
型号: RN55E2001FB14
制造商: VISHAY 威世
描述:Res Metal Film 2KΩ 1% 0.1W1/10W ±25ppm/℃ Conformal AXL Thru-Hole Bulk
