RK73H2BTTD1053F

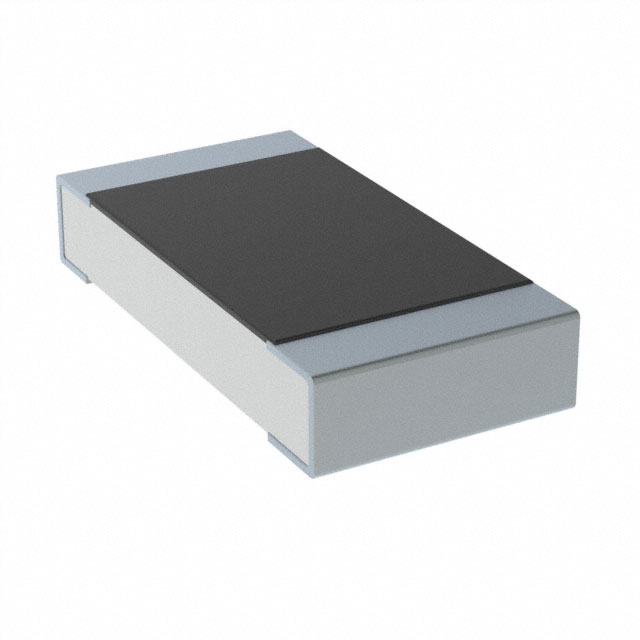

RK73H2BTTD1053F图片1
RK73H2BTTD1053F图片2
RK73H2BTTD1053F图片3
RK73H2BTTD1053F概述

Res Thick Film 1206 105KΩ 1% 0.25W1/4W ±100ppm/℃ Pad SMD Automotive T/R

105 kOhms ±1% 0.25W,1/4W 芯片 1206(3216 公制) 汽车级 AEC-Q200,防潮 厚膜


得捷:
RES 105K OHM 1% 1/4W 1206


艾睿:
The RK73H2BTTD1053F fixed single surface-mount resistor from KOA Speer Electronics makes it easy to add resistors to your circuit board. This part has a power rating of 0.25 1/4 W. This product has a resistance value of 105K Ohm. Its temperature coefficient is ±100 ppm/°C. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. This product is 3.2 mm long, 0.6 mm tall and 1.6 mm deep. It has a tolerance of 1%. This part has an operating temperature of -55 to 155 °C. This device is made with thick film technology.


RK73H2BTTD1053F中文资料参数规格
技术参数

额定电压DC 200 V

额定功率 0.25 W

电阻 105 KΩ

阻值偏差 ±1 %

工作温度Max 155 ℃

工作温度Min -55 ℃

封装参数

安装方式 Surface Mount

封装公制 3216

封装 1206

外形尺寸

长度 3.20 mm

宽度 1.6 mm

高度 0.6 mm

封装公制 3216

封装 1206

物理参数

温度系数 ±100 ppm/℃

其他

产品生命周期 Active

包装方式 Tape & Reel TR

符合标准

RoHS标准

含铅标准 Lead Free

数据手册

在线购买RK73H2BTTD1053F
型号: RK73H2BTTD1053F
制造商: KOA Speer
描述:Res Thick Film 1206 105KΩ 1% 0.25W1/4W ±100ppm/℃ Pad SMD Automotive T/R
