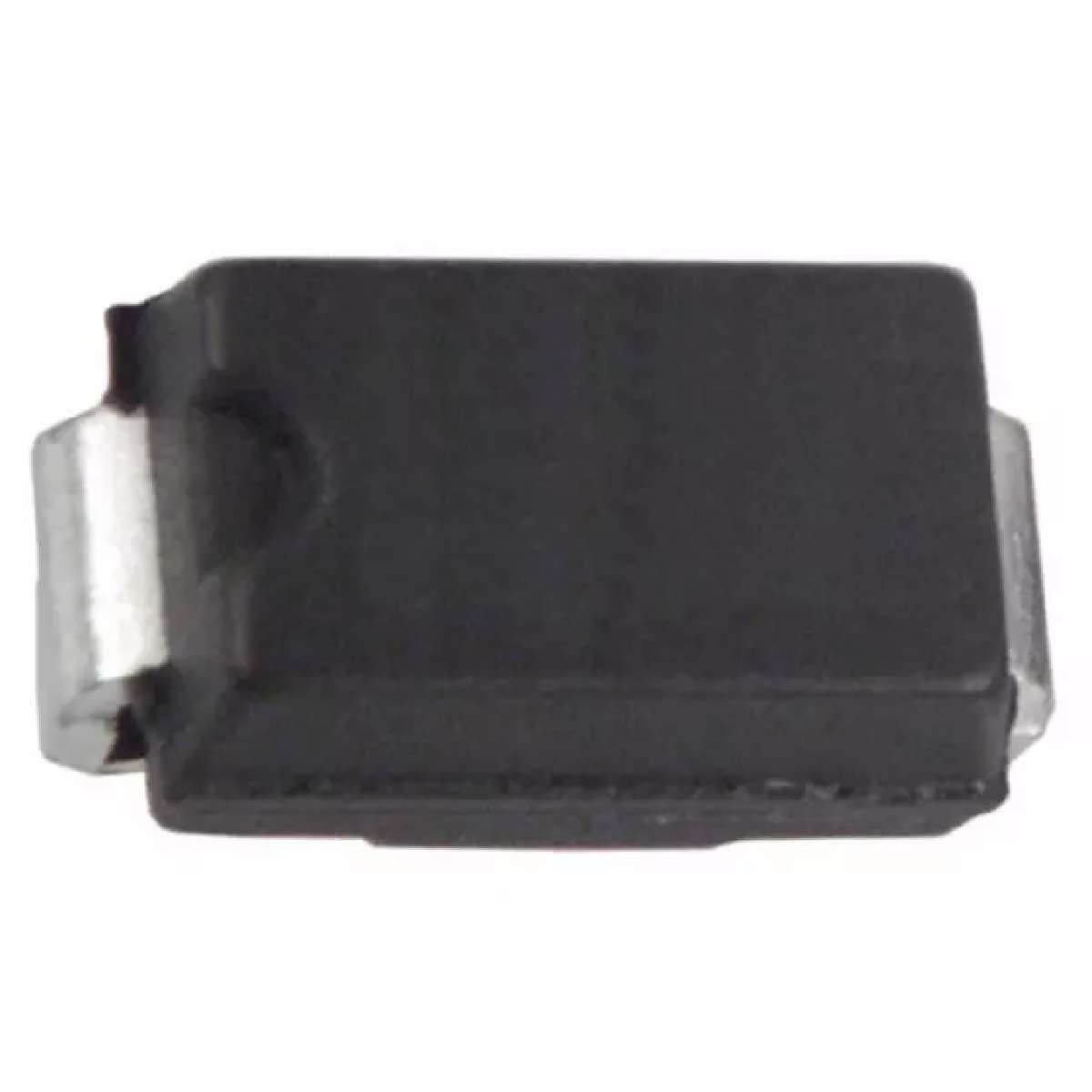

Diode Switching 50V 1.5A 2Pin SMA T/R
Features
• Glass Passivated Die Construction
• Fast Recovery Time For High Efficiency
• Surge Overload Rating to 50A Peak
• Ideally Suited for Automated Assembly
• Lead Free Finish/RoHS Compliant
• Green Molding Compound No Halogen and Antimony
得捷:
DIODE GEN PURP 50V 1.5A SMA
贸泽:
Rectifiers 2.0A 50V
艾睿:
If your circuit needs to adjust from an AC to DC voltage use a switching diode RS2AA-13-F rectifier from Diodes Zetex. This product will be shipped in tape and reel packaging for quick mounting and safe delivery. Its peak non-repetitive surge current is 50 A, while its maximum continuous forward current is 1.5 A. It is made in a single configuration. This rectifier has a minimum operating temperature of -65 °C and a maximum of 150 °C.
安富利:
Diode Switching 50V 1.5A 2-Pin SMA T/R
Chip1Stop:
Diode Switching 50V 1.5A 2-Pin SMA T/R
Verical:
Rectifier Diode Switching 50V 1.5A 150ns 2-Pin SMA T/R
Win Source:
DIODE GEN PURP 50V 1.5A SMA
额定电压DC 50.0 V
额定电流 1.50 A
电容 30.0 pF
输出电流 ≤1.50 A
正向电压 1.3 V
极性 Standard
热阻 20℃/W RθJL
反向恢复时间 150 ns
正向电流 1.5 A
正向电压Max 1.3V @1.5A
正向电流Max 1.5 A
工作温度Max 150 ℃
工作温度Min 65 ℃
安装方式 Surface Mount
引脚数 2
封装 SMA
长度 4.6 mm
宽度 2.92 mm
高度 2.1 mm
封装 SMA
工作温度 -65℃ ~ 150℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
RS2AA-13-F Diodes 美台 | 当前型号 | 当前型号 |
RS2AA-13 美台 | 类似代替 | RS2AA-13-F和RS2AA-13的区别 |
RS2AA Galaxy Semi-Conductor | 功能相似 | RS2AA-13-F和RS2AA的区别 |
