整流器 2.0A 50V

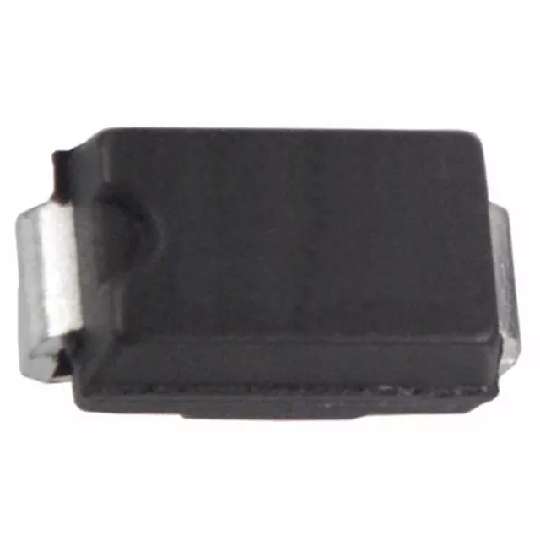

Diode Standard 50V 1.5A Surface Mount SMA
得捷:
DIODE GEN PURP 50V 1.5A SMA
贸泽:
整流器 2.0A 50V
艾睿:
Converting from AC to DC is simple when using a switching diode RS2AA-13 rectifier from Diodes Zetex. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. This rectifier has a minimum operating temperature of -65 °C and a maximum of 150 °C. It is made in a single configuration. Its peak non-repetitive surge current is 50 A, while its maximum continuous forward current is 1.5 A.
额定电压DC 50.0 V
额定电流 1.50 A
电容 30.0 pF
输出电流 ≤1.50 A
正向电压 1.3V @1.5A
极性 Standard
反向恢复时间 150 ns
正向电压Max 1.3V @1.5A
正向电流Max 1.5 A
工作温度Max 150 ℃
工作温度Min -65 ℃
安装方式 Surface Mount
引脚数 2
封装 SMA
长度 4.6 mm
宽度 2.92 mm
高度 2.1 mm
封装 SMA
产品生命周期 Discontinued at Digi-Key
包装方式 Tape & Reel TR
RoHS标准 Non-Compliant
含铅标准 Contains Lead
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
RS2AA-13 Diodes 美台 | 当前型号 | 当前型号 |
RS2AA-13-F 美台 | 类似代替 | RS2AA-13和RS2AA-13-F的区别 |
RS2AA Galaxy Semi-Conductor | 功能相似 | RS2AA-13和RS2AA的区别 |
