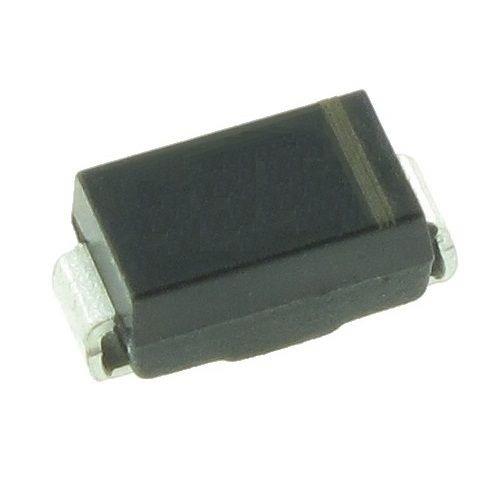

Diode Switching 1kV 3A 2Pin SMB
RS3AB Series 3 A 1 kV Surface Mount Fast Recovery Rectifier - SMB
得捷:
DIODE GEN PURP 1KV 3A SMB
立创商城:
1kV 3A 500ns
贸泽:
Rectifiers 3.0A 1000V
艾睿:
Switch from an AC voltage to a DC voltage using a switching diode RS3MB-13-F rectifier from Diodes Zetex. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. It is made in a single configuration. This rectifier has an operating temperature range of -65 °C to 150 °C. Its peak non-repetitive surge current is 100 A, while its maximum continuous forward current is 3 A.
Allied Electronics:
Diode Switching 1KV 3A 2Pin SMB
安富利:
Diode Switching 1KV 3A 2-Pin SMB T/R
Chip1Stop:
Diode Switching 1KV 3A 2-Pin SMB T/R
Verical:
Rectifier Diode Switching 1KV 3A 500ns 2-Pin SMB T/R
儒卓力:
**SI-DIODE 3A 1000V SMB **
Win Source:
DIODE GEN PURP 1KV 3A SMB
额定电压DC 1.00 kV
额定电流 3.00 A
电容 50.0 pF
输出电流 ≤3.00 A
正向电压 1.3 V
极性 Standard
热阻 25℃/W RθJL
反向恢复时间 500 ns
正向电流 3 A
正向电压Max 1.3V @3A
正向电流Max 3 A
工作温度Max 150 ℃
工作温度Min 65 ℃
安装方式 Surface Mount
引脚数 2
封装 SMB-2
长度 4.57 mm
宽度 3.94 mm
高度 2.42 mm
封装 SMB-2
工作温度 65℃ ~ 150℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
香港进出口证 NLR
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
RS3MB-13-F Diodes 美台 | 当前型号 | 当前型号 |
RS3MB-13 美台 | 功能相似 | RS3MB-13-F和RS3MB-13的区别 |
RS3MB Galaxy Semi-Conductor | 功能相似 | RS3MB-13-F和RS3MB的区别 |
