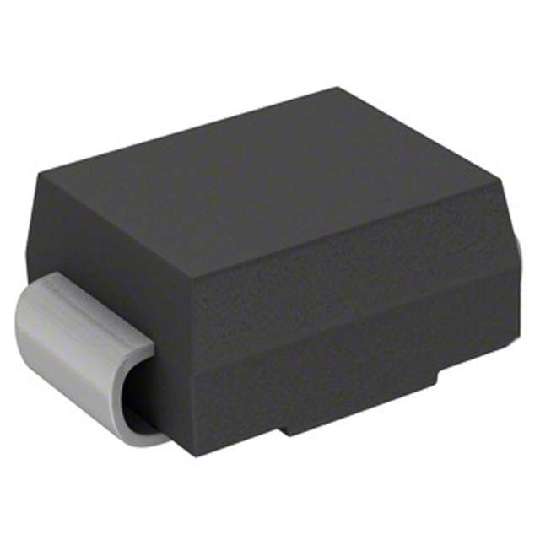

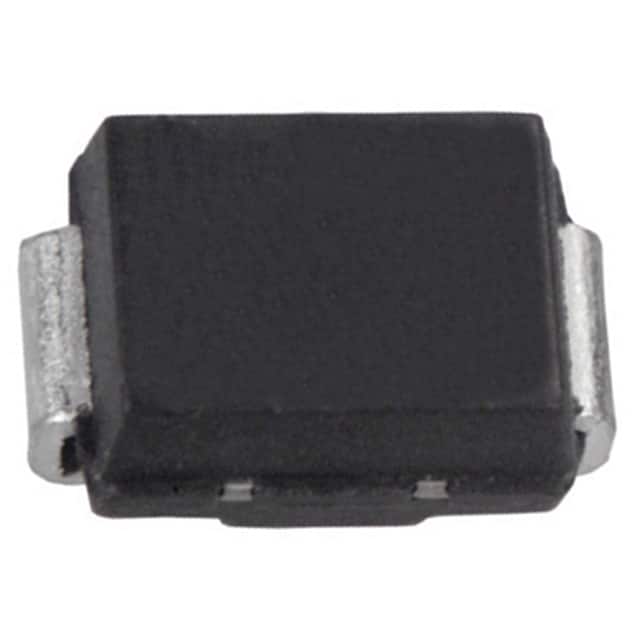

RS2D-13-F 编带
标准 200 V 1.5A 表面贴装型 SMB
立创商城:
200V 1.5A 150ns
得捷:
DIODE GEN PURP 200V 1.5A SMB
艾睿:
Switch from an AC voltage to a DC voltage using a switching diode RS2D-13-F rectifier from Diodes Zetex. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. It is made in a single configuration. Its peak non-repetitive surge current is 50 A, while its maximum continuous forward current is 1.5 A. This rectifier has a minimum operating temperature of -65 °C and a maximum of 150 °C.
Verical:
Diode Switching 200V 1.5A 2-Pin SMB T/R
Win Source:
DIODE GEN PURP 200V 1.5A SMB
额定电压DC 200 V
额定电流 1.50 A
电容 30.0 pF
输出电流 ≤1.50 A
正向电压 1.3V @1.5A
极性 Standard
热阻 20℃/W RθJL
反向恢复时间 150 ns
正向电流 1.5 A
正向电压Max 1.3V @1.5A
正向电流Max 1500 mA
工作温度Max 150 ℃
工作温度Min -65 ℃
安装方式 Surface Mount
引脚数 2
封装 SMB
长度 4.57 mm
宽度 3.94 mm
高度 2.42 mm
封装 SMB
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
RS2D-13-F Diodes 美台 | 当前型号 | 当前型号 |
ES2G-13-F 美台 | 功能相似 | RS2D-13-F和ES2G-13-F的区别 |
RS2B Taitron | 功能相似 | RS2D-13-F和RS2B的区别 |
