10位FET总线交换开关系列 10-BIT FET BUS-EXCHANGE SWITCHES
The SN74CBT3383 and SN54CBT3383 devices provide ten bits of high-speed TTL-compatible bus switching or exchanging. The low ON-state resistance of the switch allows connections to be made with minimal propagation delay.
The devices operate as a 10-bit bus switch or a 5-bit bus exchanger, which provides swapping of the A and B pairs of signals. The bus-exchange function is selected when BX is high. The switches are connected when BE is low.
得捷:
IC BUS FET EXCHG SW 5X2:2 24SSOP
立创商城:
SN74CBT3383DBQR
德州仪器TI:
5-V, crosspoint/exchange, 10-channel FET bus switch
贸泽:
数字总线开关 IC 10bit FET BusEx Sw
艾睿:
5-CHBus Exchange Switch 1-Element 10-IN- 10-OUT 24-Pin SSOP T/R
安富利:
Bus Exchange Switch 1-Element 5-CH 24-Pin SSOP T/R
Chip1Stop:
Bus Exchange Switch 1-Element 5-CH 24-Pin SSOP T/R
Verical:
5-CHBus Exchange Switch 1-Element 10-IN- 10-OUT 24-Pin SSOP T/R
Newark:
# TEXAS INSTRUMENTS SN74CBT3383DBQR Bus Exchange Switch, 10 Channels, 64 mA, 4.5 V to 5.5 V, QSOP-24
电源电压DC 4.50V ~ 5.50V
输出接口数 10
输出电流 64 mA
触点类型 DPDT
供电电流 250 mA
通道数 10
位数 10
传送延迟时间 250 ps
极性 Non-Inverting
电压波节 5.00 V
带宽 200 MHz
输入数 10
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 4.5V ~ 5.5V
电源电压Max 5.5 V
电源电压Min 4.5 V
安装方式 Surface Mount
引脚数 24

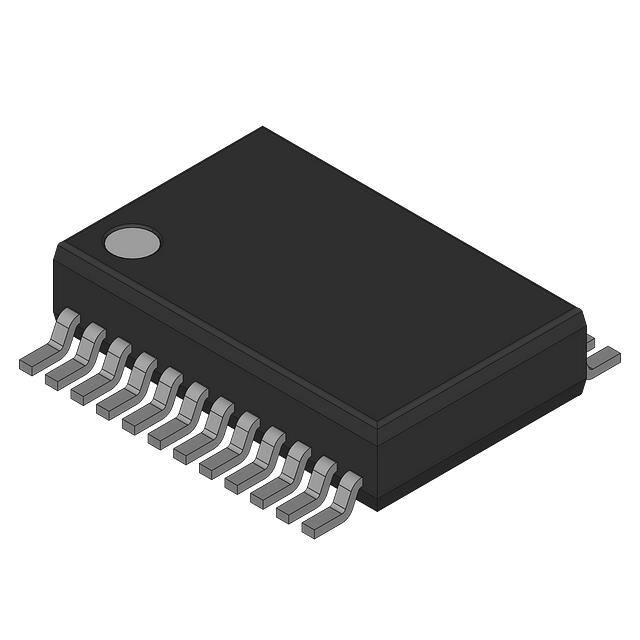

封装 SSOP-24
长度 8.75 mm
宽度 4 mm
高度 1.5 mm
封装 SSOP-24
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
SN74CBT3383DBQR TI 德州仪器 | 当前型号 | 当前型号 |
SN74CBT3383CDBQR 德州仪器 | 类似代替 | SN74CBT3383DBQR和SN74CBT3383CDBQR的区别 |
SN74CBT3383CDBR 德州仪器 | 类似代替 | SN74CBT3383DBQR和SN74CBT3383CDBR的区别 |
