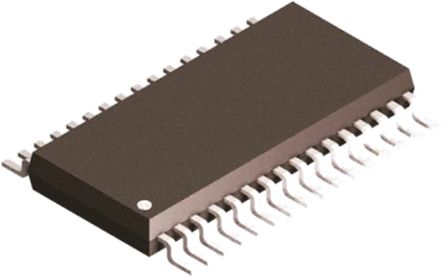

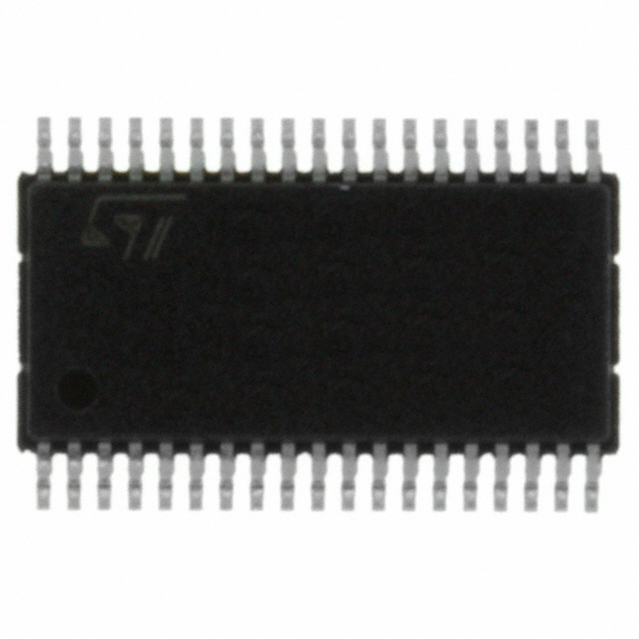

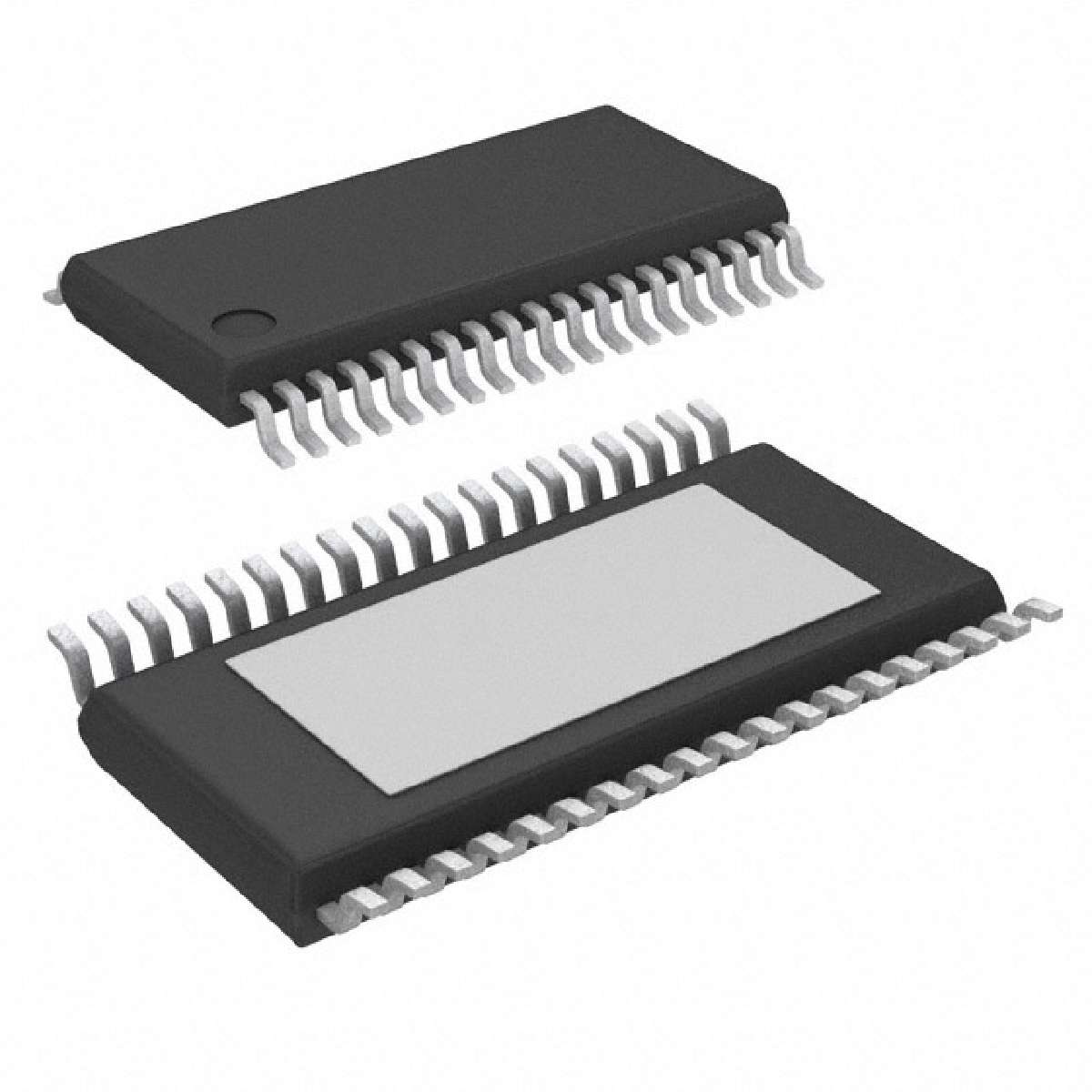

STMICROELECTRONICS SCLT3-8BT8 静电保护装置, TVS, 46 V, HTSSOP, 38 引脚, 850 mW
电流限制端接 CLT,STMicroelectronics
智能保护端接设计用于数字输入模块和接近传感器接口,用于工厂、工业和楼宇自动化系统,并用于 PLC 系列。
8 个输入保护通道
SPI 输出
集成 600 W 过电压保护
得捷:
IC CURRENT LIMITING 38HTSSOP
立创商城:
SCLT3-8BT8
欧时:
### 电流限制端接 CLT,STMicroelectronics智能保护端接设计用于数字输入模块和接近传感器接口,用于工厂、工业和楼宇自动化系统,并用于 PLC 系列。8 个输入保护通道 SPI 输出 集成 600 W 过电压保护 ### 串行输入/输出外设
e络盟:
静电保护装置, TVS, 46 V, HTSSOP, 38 引脚, 850 mW, SCLT3 Series
艾睿:
Protected Digital Input Termination With Serialized State Transfer
安富利:
Circuit Protection Misc Protected Digital Input Termination With Serialized State Transfer
富昌:
HTSSOP38 BODY 4.4 PITCH0.5 EXPAD
Chip1Stop:
Circuit Protection Misc Protected Digital Input Termination With Serialized State Transfer
Verical:
Circuit Protection Misc Protected Digital Input Termination With Serialized State Transfer
DeviceMart:
IC SERIAL TERM 8-LINE 38HTSSOP
输出接口数 8
针脚数 38
耗散功率 850 mW
钳位电压 46 V
输入电压Max 35 V
输入数 8
工作温度Max 85 ℃
工作温度Min -25 ℃
电源电压 9V ~ 35V
安装方式 Surface Mount
引脚数 38
封装 HTSSOP-38
长度 9.8 mm
宽度 4.5 mm
高度 0.95 mm
封装 HTSSOP-38
工作温度 -25℃ ~ 85℃
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
