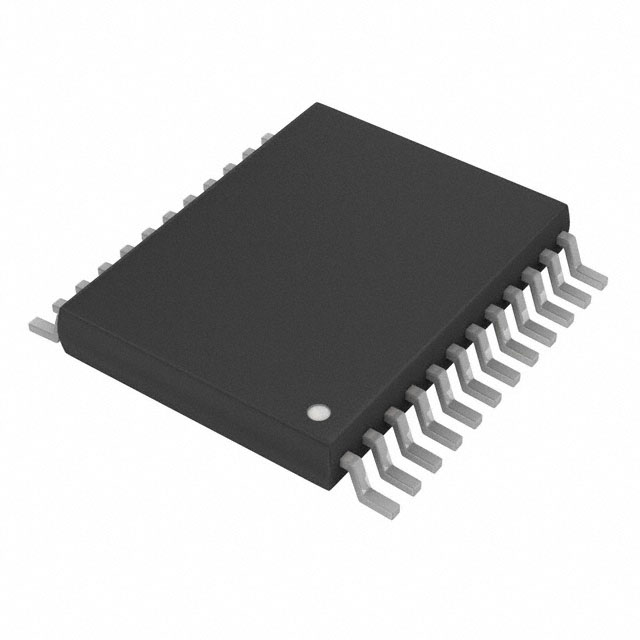

SN74AVCH8T245DGVR

具有可配置VILTAGE转换和3态输出的8位双电源总线收发器 8-BIT DUAL-SUPPLY BUS TRANSCEIVER WITH CONFIGURABLE VILTAGE TRANSLATION AND 3-STATE OUTPUTS

* Control Inputs VIH/VIL Levels Are Referenced to VCCA Voltage * VCC Isolation Feature — If Either VCC Input Is at GND, All I/O Ports Are in the High-Impedance State * Ioff Supports Partial-Power-Down Mode Operation * Fully Configurable Dual-Rail Design Allows Each Port to Operate Over the Full 1.2-V to 3.6-V Power-Supply Range * I/Os Are 4.6-V Tolerant * Max Data Rates: * 320 Mbps VCCA ≤ 1.8 V and VCCB ≤ 1.8 V * 170 Mbps VCCA ≥ 1.8 V or VCCB ≥ 1.8 V * Bus Hold on Data Inputs Eliminates the Need for External Pullup/Pulldown Resistors * Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II * ESD Protection Exceeds JESD 22 * 8000-V Human-Body Model A114-A * 200-V Machine Model A115-A * 1000-V Charged-Device Model C101
