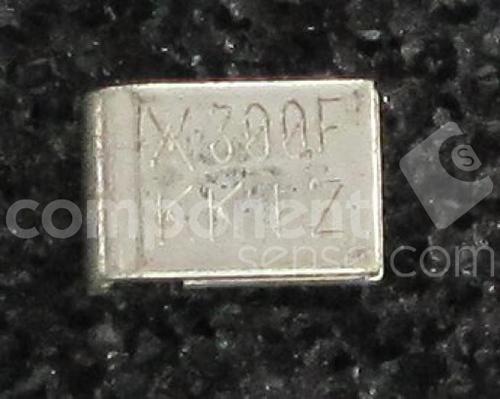

PTC Resettable Fuse 3Ahold 6Atrip 6VDC 40A 1.5W 35s 0.015Ω SMD Solder Pad 7.98 X 5.44 X 3mm T/R
Tyco Electronics" PolySwitch™ surface-mount devices are the preferred circuit protection method for computer, consumer, multimedia, portable and automotive electronics applications.
**Benefits:**
* Smaller Size Saves Board Space and Cost
* Many Product Choices Give Engineers More Design Flexibility
* Assists in Meeting Regulatory Requirements
* Higher Voltage Ratings Allow Use in New Applications
**Features:**
* Size 7555 mm/2920 mils
* Broadest Range of Resettable Devices in the Industry
* Small Footprint
* Fast Time-to-Trip
* Low Resistance
**Applications:**
* Computer
* Portable Electronics
* Multimedia
* Game Machines
* Telephony and Broadband
* Mobile Phones
* Automotive
* Industrial Controls
* Battery
额定电压DC 6.00 V
工作电压 6 VDC
跳闸时间 35 s
额定电流 3 A
耗散功率 1.5 W
电阻 0.048 Ω
保持电流 3 A
跳闸电流 6 A
电阻DC) 0.048 Ω
额定电流Max 40 A
保持电流Max 3 A
工作温度Max 85 ℃
工作温度Min -40 ℃
额定电压Max 6 V
额定电压 6 VDC
安装方式 Surface Mount
封装 2920
长度 7.98 mm
宽度 5.44 mm
高度 3 mm
封装 2920
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 工业, Consumer Electronics, 多媒体, 车用, 便携式器材, 计算机和计算机周边, Computers & Computer Peripherals, 通信与网络, Multimedia, Portable Devices, Communications & Networking, Industrial, Automotive, 消费电子产品
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ELV标准 Compliant
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
HTS代码 8533210090;8536100040
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|

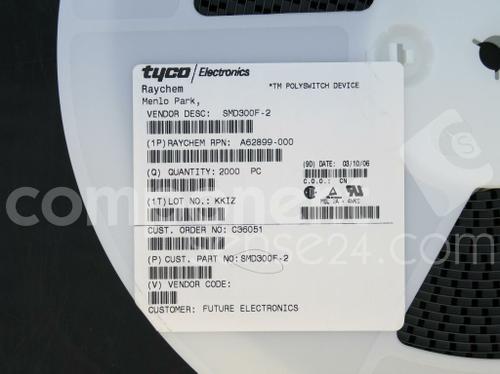

SMD300F-2 TE Connectivity 泰科 | 当前型号 | 当前型号 |
