PTC Resettable Fuse 2Ahold 4.4Atrip 30VDC 100A 1.6W 4s 0.03Ω SMD Solder Pad 8.2 X 11 X 1.1mm Bulk

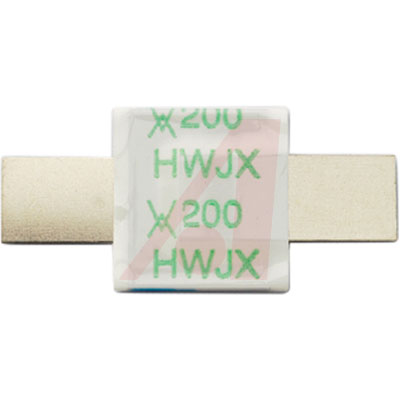

The is a 2A PolySwitch Resettable Device with quarter-hard nickel leads and polyester tape. Raychem Circuit Protection, pioneer of polymeric PTC resettable device has developed several material platforms specifically tailored to help protect battery applications. Each of these material platforms offers different performance characteristics, allowing the engineer greater design flexibility. This SRP battery protector is compatible with high-volume electronics assembly and assists in meeting regulatory requirements. This resettable device increases battery operating time.
- .
- Fast time-to-trip
- .
- Low resistance devices increase battery operating time
Intended for protection against occasional over-current or over-temperature fault conditions and should not be used when repeated fault conditions or prolonged trip events are anticipated.
额定电压DC 30.0 V
工作电压 30 V
跳闸时间 4 s
额定电流 2 A
耗散功率 1.6 W
产品系列 SRP
电阻 0.1 Ω
保持电流 2 A
跳闸电流 4.4 A
电阻DC） 0.1 Ω
额定电流Max 100 A
保持电流Max 2 A
工作温度Max 85 ℃
工作温度Min -40 ℃
额定电压Max 30 VDC
额定电压 30 VDC
安装方式 Axial
封装 Strap
长度 23.4 mm
宽度 11 mm
高度 1.1 mm
封装 Strap
厚度 1.10 mm
产品生命周期 Unknown
包装方式 Bulk
制造应用 Power Management, Consumer Electronics, 电源管理, 便携式器材, Portable Devices, 通信与网络, 消费电子产品, Communications & Networking
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ELV标准 Compliant
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
HTS代码 8536100040
