SHHN000A3CL41Z

GE CRITICAL POWER  SHHN000A3CL41Z  直流/直流转换器, 隔离电路板安装, 挡板, 通孔安装, 9W, 15V, 300mA, -15V, 300mA

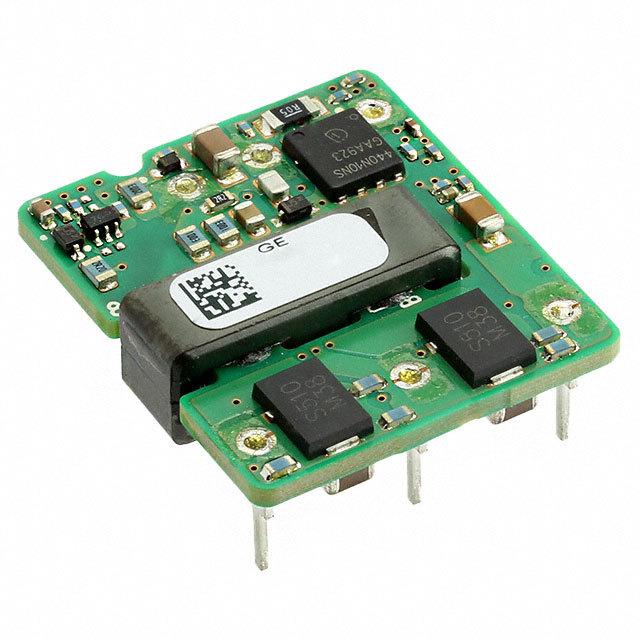

The is a 2-output board-mount isolated DC to DC Converter Power Module with regulated output voltage and wide input voltage range. The SHHN000A3A HAMMERHEAD series 9W power module is isolated DC/DC converter that provides precisely regulated output voltage at ±15VDC. The outputs are fully isolated from the input, allowing versatile polarity configurations and grounding connections. The module exhibits a minimum efficiency of 84% at full load and nominal input. Built-in filtering for both input and output minimizes the need for external filtering.

.

No minimum load for no damage operation

.

Constant switching frequency

.

Low output ripple and noise

.

Small Size and low profile, follows industry standard 1 x 1 footprint

.

Reflow process compliant, through hole version

.

Positive and negative remote on/off logic

.

Output over-current, overvoltage protection

.

Over-temperature protection

.

-40 to +85°C Wide operating temperature range
