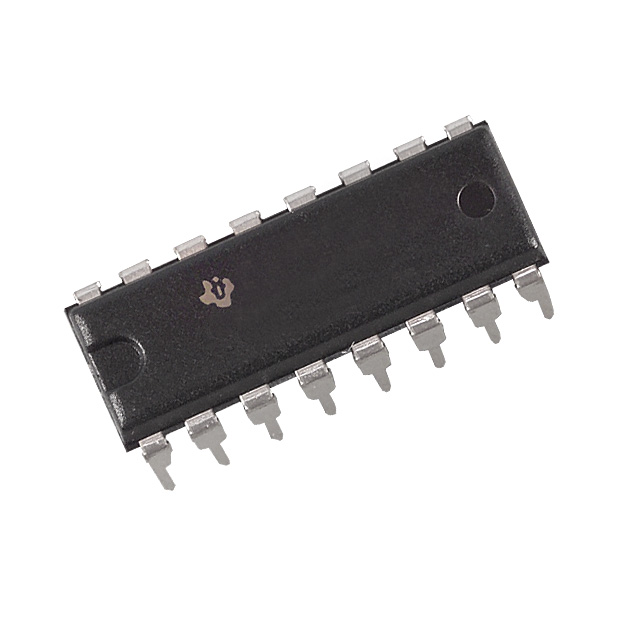

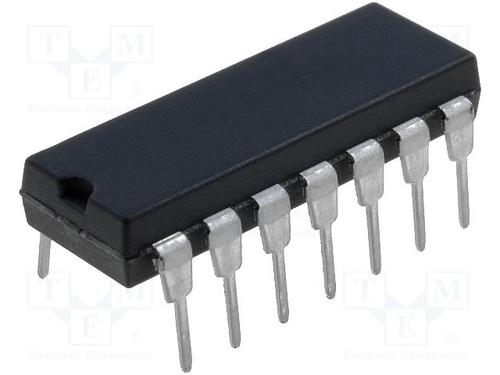

TEXAS INSTRUMENTS SN74HCT138N 芯片, 译码器/信号分离器
The is a 3-line to 8-line Decoder/Demultiplexer designed for high-performance memory-decoding or data-routing applications requiring very short propagation delay times. In high-performance memory systems, these decoders can minimize the effects of system decoding. When employed with high-speed memories utilizing a fast enable circuit, the delay times of these decoders and the enable time of the memory usually are less than the typical access time of the memory. This means that the effective system delay introduced by the decoders is negligible. The conditions at the binary-select inputs and the three enable inputs select one of eight output lines. Two active-low G\\ and one active-high G enable inputs reduce the need for external gates or inverters when expanding. A 24-line decoder can be implemented without external inverters and a 32-line decoder requires only one inverter. An enable input can be used as a data input for demultiplexing applications.
电源电压DC 4.50V ~ 5.50V
输出接口数 8
输出电流 -25.0 mA to 25.0 mA
电路数 1
针脚数 16
位数 8
电压波节 5.00 V
带宽 28.0 MHz
输出电流驱动 -1.00 mA
输出电流Max 4 mA
输入数 3
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 4.5V ~ 5.5V
电源电压Max 5.5 V
电源电压Min 4.5 V
安装方式 Through Hole
引脚数 16
封装 DIP-16
封装 DIP-16
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tube
制造应用 工业
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
