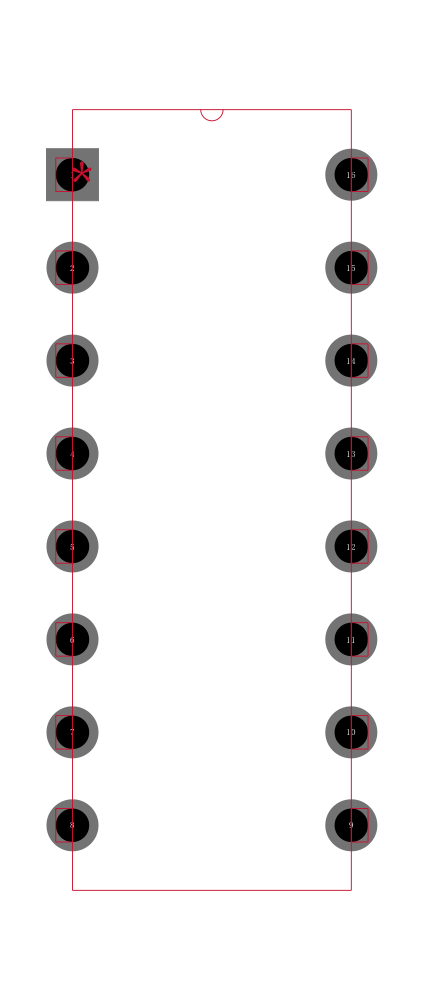

SN54HC175J

翻两番D型触发器与Clear QUADRUPLE D-TYPE FLIP-FLOPS WITH CLEAR

description/ordering information

These positive-edge-triggered D-type flip-flops have a direct clear CLR input. The ’HC175 devices feature complementary outputs from each flip-flop.

• Wide Operating Voltage Range of 2 V to 6 V

• Outputs Can Drive Up To 10 LSTTL Loads

• Low Power Consumption, 80-µA Max ICC

• Contain Four Flip-Flops With Double-Rail Outputs

• Typical tpd = 13 ns

• ±4-mA Output Drive at 5 V

• Low Input Current of 1 µA Max

• Applications Include:

   − Buffer/Storage Registers

   − Shift Registers

   − Pattern Generators
