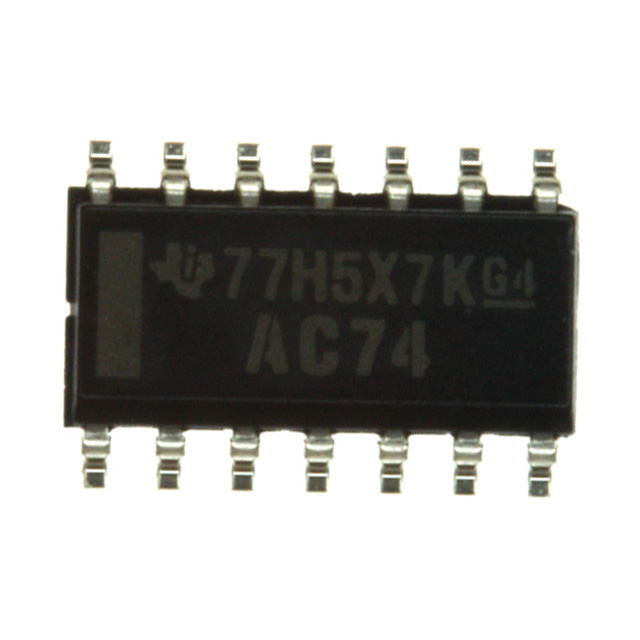

TEXAS INSTRUMENTS SN74AC74DR 双触发器
Store state information for later use by using the Texas Instruments flip flop device. It has a differential output signal. This flip flop has a minimum operating temperature of -40 °C and a maximum of 85 °C. This product will be shipped in tape and reel packaging to allow for quick mounting and safe delivery. This inverting/non-inverting device has a typical operating supply voltage of 2.5|3.3|5 V. Its minimum operating supply voltage of 2 V, while its maximum is 6 V. It has 2 channels per chip.
频率 160 MHz
电源电压DC 2.00V ~ 6.00V
输出接口数 1
输出电流 50 mA
电路数 2
针脚数 14
时钟频率 160 MHz
位数 2
传送延迟时间 10.5 ns
极性 Non-Inverting, Inverting
电压波节 5.00 V, 3.30 V
输入电容 3 pF
输出电流驱动 -1.00 mA
输入数 1
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 2V ~ 6V
电源电压Max 6 V
电源电压Min 2 V
安装方式 Surface Mount
引脚数 14
封装 SOIC-14
封装 SOIC-14
重量 0.0019586119832 kg
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
SN74AC74DR TI 德州仪器 | 当前型号 | 当前型号 |
SN74AC74D 德州仪器 | 类似代替 | SN74AC74DR和SN74AC74D的区别 |
SN74AC74DE4 德州仪器 | 类似代替 | SN74AC74DR和SN74AC74DE4的区别 |
SN74AC74DRG4 德州仪器 | 类似代替 | SN74AC74DR和SN74AC74DRG4的区别 |
