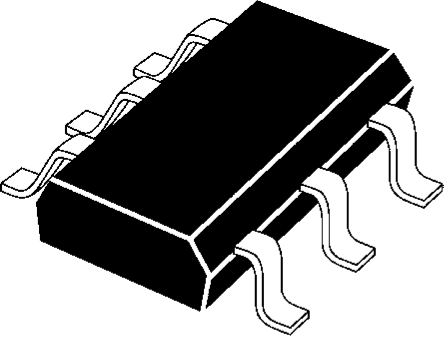

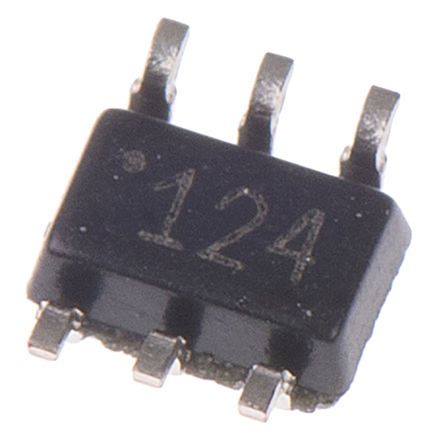

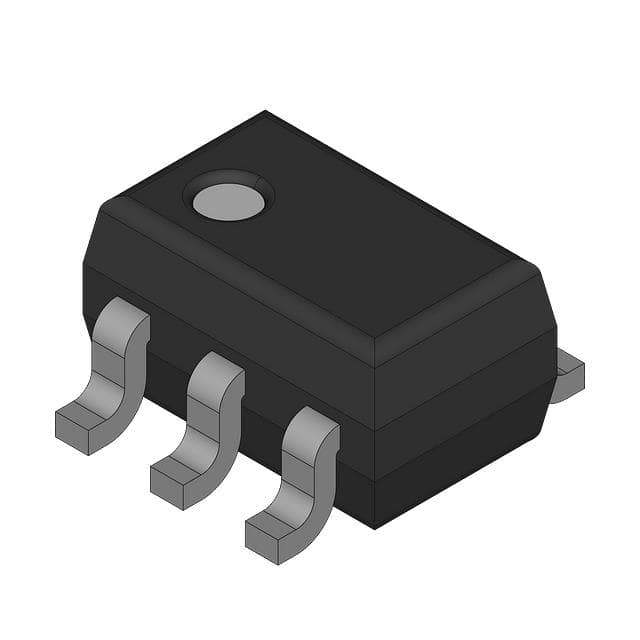

TEXAS INSTRUMENTS SN74LVC1G373DCKR 芯片, D型锁存器, SMD, SC-70-6, 3.3V, 整卷
74LVC1G 系列,Texas Instruments
低电压 CMOS 逻辑
单门封装
工作电压:1.65 至 5.5 V
兼容性:输入 LVTTL/TTL,输出 LVCMOS
按照 JESD 78 II 类标准,闩锁效应性能超过 100 mA
ESD 保护超过 JESD 22
得捷:
IC LTCH D-TYP SGL 3-OUT SC70-6
立创商城:
SN74LVC1G373DCKR
德州仪器TI:
Single D-Type Latch with 3S Output
欧时:
### 74LVC1G 系列,Texas Instruments低电压 CMOS 逻辑 单门封装 工作电压:1.65 - 5.5 兼容性:输入 LVTTL/TTL、输出 LVCMOS 按 JESD 78 II 级标准,闩锁效应性能超过 100 mA。 ESD 保护超乎 JESD 22 标准 ### 74LVC 系列
贸泽:
闭锁 Sgl D-Type Latch w/ 3S Output
e络盟:
锁扣, LVC系列, 74LVC1G373, D型, 三态非反向, 4 ns, 32 mA, SC-70
艾睿:
This d-type SN74LVC1G373DCKR low-level latch manufactured by Texas Instruments contains real time information and can be pushed through it once it is enabled. With a 3-state output, this is power management at its best. This latch has an operating temperature range of -40 °C to 125 °C. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components. This non-inverting device has a typical operating supply voltage of 1.8|2.5|3.3|5 V. Its minimum operating supply voltage of 1.65 V, while its maximum is 5.5 V. It has 1 channels per chip.
安富利:
Latch Transparent 3-ST 1-CH D-Type 6-Pin SC-70 T/R
Chip1Stop:
Latch Transparent 3-ST 1-CH D-Type 6-Pin SC-70 T/R
Verical:
Latch Transparent 3-ST 1-CH D-Type 6-Pin SC-70 T/R
Newark:
# TEXAS INSTRUMENTS SN74LVC1G373DCKR Latch, LVC Family, 74LVC1G373, D Type, Tri State Non Inverted, 4 ns, 32 mA, SC-70
Win Source:
IC LTCH D-TYP SGL 3-OUT SC70-6
DeviceMart:
IC LTCH D-TYP SGL 3-OUT SC70-6
电源电压DC 1.65V min
输出接口数 1
输出电流 32 mA
电路数 1
针脚数 6
位数 1
传送延迟时间 3.50 ns
逻辑门个数 1
输入数 1
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 1.65V ~ 5.5V
电源电压Max 5.5 V
电源电压Min 1.65 V
安装方式 Surface Mount
引脚数 6
封装 SC-70-6
长度 2.15 mm
宽度 1.4 mm
高度 1 mm
封装 SC-70-6
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 工业, 通信与网络
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
SN74LVC1G373DCKR TI 德州仪器 | 当前型号 | 当前型号 |
NC7SZ373P6X 飞兆/仙童 | 完全替代 | SN74LVC1G373DCKR和NC7SZ373P6X的区别 |
SN74LVC1G373DBVR 德州仪器 | 完全替代 | SN74LVC1G373DCKR和SN74LVC1G373DBVR的区别 |
NC7SZ373P6 飞兆/仙童 | 完全替代 | SN74LVC1G373DCKR和NC7SZ373P6的区别 |
