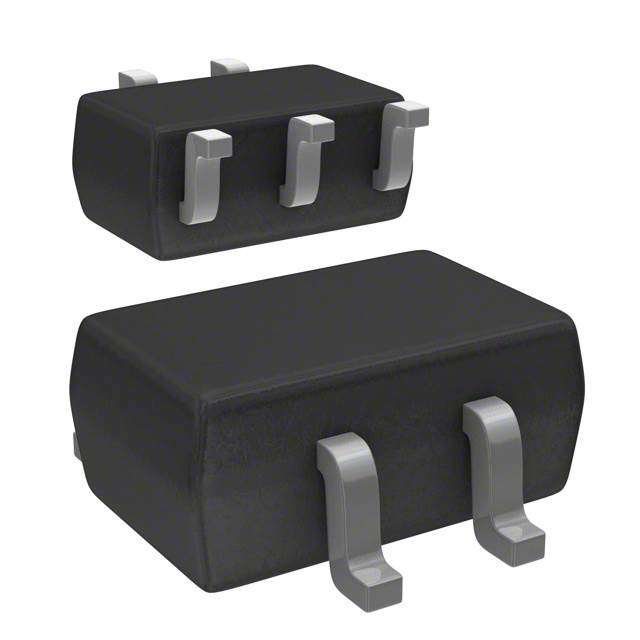

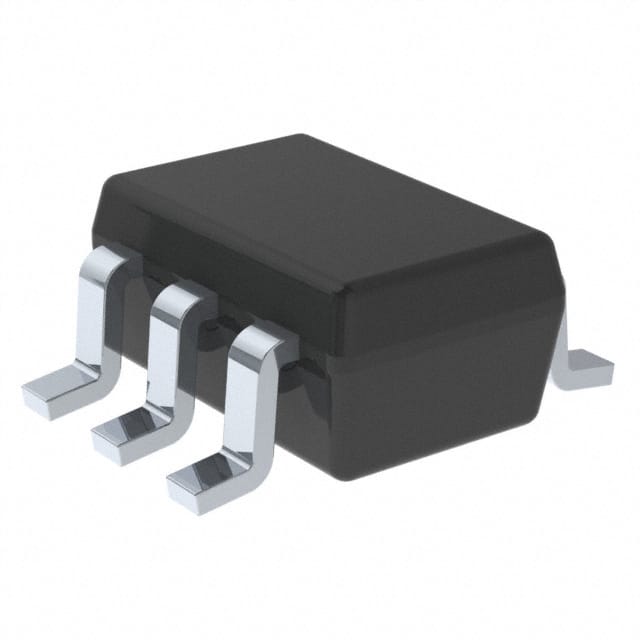

SN74LVC1T45MDCKREP

TEXAS INSTRUMENTS  SN74LVC1T45MDCKREP.  芯片, 电压转换器, 1输入, 单路, 6-SC-70

The is an enhanced single-bit dual-supply Bus/Configurable Voltage Transceiver with 3-state outputs. This non-inverting bus transceiver uses two separate configurable power-supply rails. The A port is designed to track VCCA. VCCA accepts any supply voltage from 1.65 to 5.5V. The B port is designed to track VCCB. VCCB accepts any supply voltage from 1.65 to 5.5V. This allows for universal low-voltage bidirectional translation between any of the 1.8/2.5/3.3/5V voltage nodes. It is designed for asynchronous communication between two data buses. The logic levels of the direction-control DIR input activate either the B-port outputs or the A-port outputs. The device transmits data from the A bus to the B bus when the B-port outputs are activated and from the B bus to the A bus when the A-port outputs are activated. The input circuitry on both A and B ports always is active and must have a logic HIGH or LOW level applied to prevent excess ICC and ICCZ.

.

VCC Isolation - If either VCC input Is at GND, both ports are in the high-impedance state

.

DIR Input circuit referenced to VCCA

.

IOFF Supports partial-power-down mode operation

.

Controlled baseline

.

One assembly/test site

.

One fabrication site

.

Extended life cycle

.

Latch-up performance exceeds 100mA per JESD 78, class II

.

4µA ICC Low power consumption

.

±24mA Output drive at 3.3V

.

Green product and no Sb/Br
