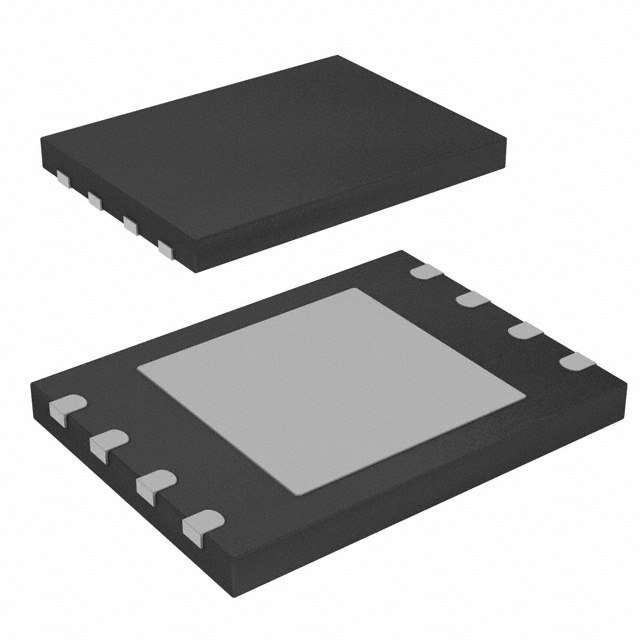

S25FL128SAGNFI001

SPANSION  S25FL128SAGNFI001  闪存, 或非, 128 Mbit, 133 MHz, SPI, WSON, 8 引脚

The is a 128Mb Flash-NOR Non-volatile Memory with SPI interface. This is a MirrorBit® flash non-volatile memory CMOS 3V core with versatile I/O serial peripheral interface with multi-I/O. The multi I/O command set and footprint compatible with S25FL-P SPI family and serial command set and footprint compatible with S25FL-A, S25FL-K and S25FL-P SPI families. It has one time program OTP array of 1024 bytes security. The FL serial flash memory offers a reduced pin count for lower system cost while providing optimal read/write performance.

.

SPI clock polarity and phase modes 0 and 3

.

Common flash interface CFI data for configuration information

.

Quad-input page programming QPP for slow clock systems

.

Cycle endurance - 100000 program-erase cycles per sector minimum

.

Data retention - 20 years typical data retention

.

® 65nm Mirror-bit technology with Eclipse™ Architecture

.

-40 to 85°C Industrial temperature range
