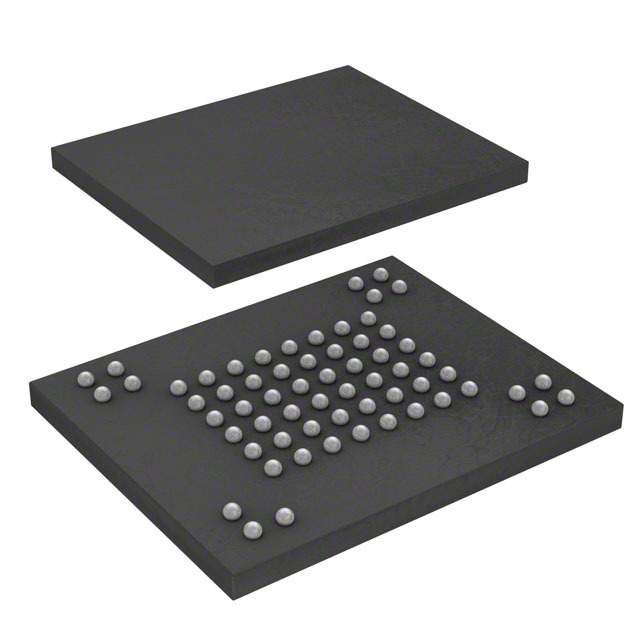

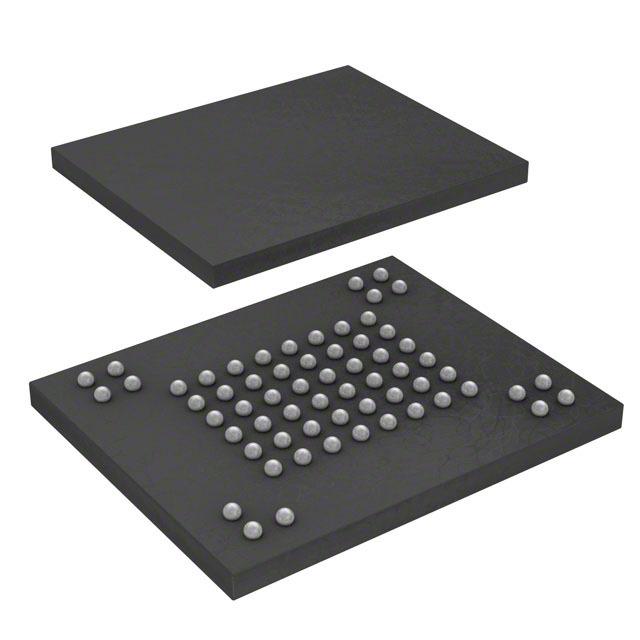

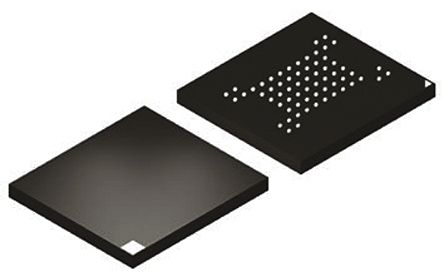

SPANSION S34ML01G100BHI000 闪存, 与非, 1 Gbit, 128M x 8位, 并行, BGA, 63 引脚
General Description
The S34ML01G1, S34ML02G1, and S34ML04G1 series is offered in 3.3 VCC and VCCQ power supply, and with x8 or x16 I/O interface. Its NAND cell provides the most cost-effective solution for the solid state mass storage market. The memory is divided into blocks that can be erased independently so it is possible to preserve valid data while old data is erased. The page size for x8 is 2048 + 64 spare bytes; for x16 1024 + 32 words.
电源电压DC 2.70V min
供电电流 30 mA
针脚数 63
存取时间 25 ns
内存容量 128000000 B
存取时间Max 20 ns
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 3.3 V
电源电压Max 3.6 V
电源电压Min 2.7 V
安装方式 Surface Mount
引脚数 63
封装 BGA-63
长度 11 mm
宽度 9 mm
高度 1 mm
封装 BGA-63
工作温度 40℃ ~ 85℃
产品生命周期 Active
包装方式 Tray
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
香港进出口证 NLR
