SN74LVC1G123DCUT概述

TEXAS INSTRUMENTS  SN74LVC1G123DCUT  芯片, 逻辑电路 - 多频振荡器

The is a Single Retriggerable Monostable Multivibrator with Schmitt-trigger inputs, designed for 1.65 to 5.5V VCC operation. This monostable multivibrator features output pulse-duration control by three methods. In the first method, the A input is low and the B input goes high. In the second method, the B input is high and the A input goes low. In the third method, the A input is low, the B input is high and the clear CLR input goes high. The output pulse duration is programmed by selecting external resistance and capacitance values. The external timing capacitor must be connected between Cext and Rext/Cext positive and an external resistor connected between Rext/Cext and VCC. To obtain variable pulse durations, connect an external variable resistance between Rext/Cext and VCC. The output pulse duration also can be reduced by taking CLR low. Pulse triggering occurs at a particular voltage level and is not directly related to the transition time of input pulse.

.
Supports 5V VCC operation
.
Inputs accept voltages to 5.5V
.
Maximum TPD of 8ns at 3.3V
.
Supports mixed-mode voltage operation on all ports
.
Supports down translation to VCC
.
Schmitt-trigger circuitry on A and B inputs for slow input transition rates
.
Edge triggered from active-high or active-low gated logic inputs
.
Retriggerable for very long output pulses, up to 100% duty cycle
.
Overriding clear terminates output pulse
.
Glitch-free power-up reset on outputs
.
Ioff supports live insertion, partial power-down mode operation and back-drive protection
.
Latch-up performance exceeds 100mA per JESD 78, class II
.
Green product and no Sb/Br

Device has limited built-in ESD protection. The leads should be shorted together or the device placed in conductive foam during storage or handling to prevent electrostatic damage to the MOS gates.

SN74LVC1G123DCUT中文资料参数规格
技术参数

电源电压DC 1.65V min

输出电流 32 mA

通道数 1

针脚数 8

位数 1

传送延迟时间 8.20 ns

上升时间 2.50 ns

工作温度Max 85 ℃

工作温度Min -40 ℃

电源电压 1.65V ~ 5.5V

电源电压Max 5.5 V

电源电压Min 1.65 V

封装参数

安装方式 Surface Mount

引脚数 8

封装 VSSOP-8

外形尺寸

封装 VSSOP-8

物理参数

工作温度 -40℃ ~ 125℃

其他

产品生命周期 Active

包装方式 Tape & Reel TR

制造应用 音频, 无线, 电源管理, 便携式器材, 通信与网络, 成像, 消费电子产品, 信号处理, 视频和目视, 计算机和计算机周边

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

REACH SVHC标准 No SVHC

REACH SVHC版本 2015/06/15

海关信息

ECCN代码 EAR99

数据手册

SN74LVC1G123DCUT引脚图与封装图
SN74LVC1G123DCUT引脚图

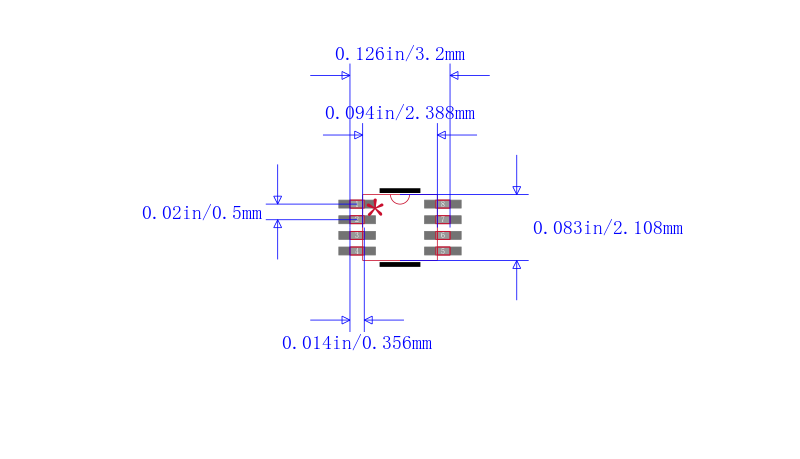

SN74LVC1G123DCUT封装图
