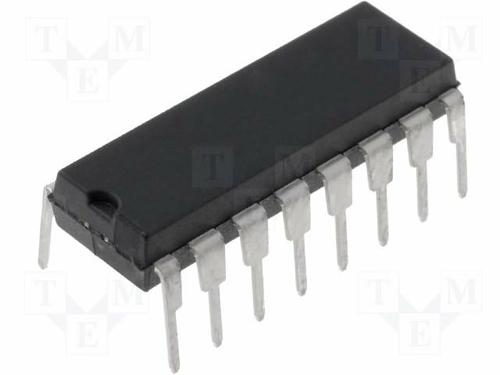

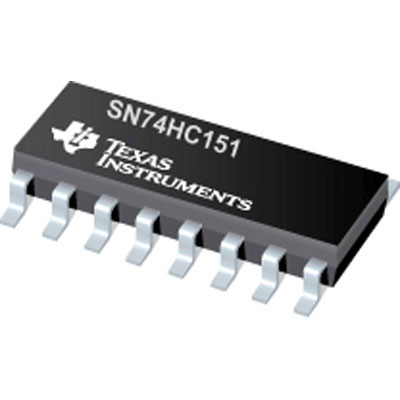

SN74HC151N

TEXAS INSTRUMENTS  SN74HC151N  芯片, 逻辑电路 - 数据选择器/多路复用器

The is a 8-to-1 Data Selector/Multiplexer provides full binary decoding to select one of eight data sources. The strobe G\\ input must be at a low logic level to enable the inputs. A high level at the strobe terminal forces the W output high and the Y output low.

.

Boolean function generators

.

Parallel-to-serial converters

.

Data source selectors

.

Outputs can drive up to 10 LSTTL loads

.

80µA Maximum low power consumption

.

Typical tpd = 13ns

.

±6mA Output drive at 5V

.

1µA Maximum low input current

.

Green product and no Sb/Br
