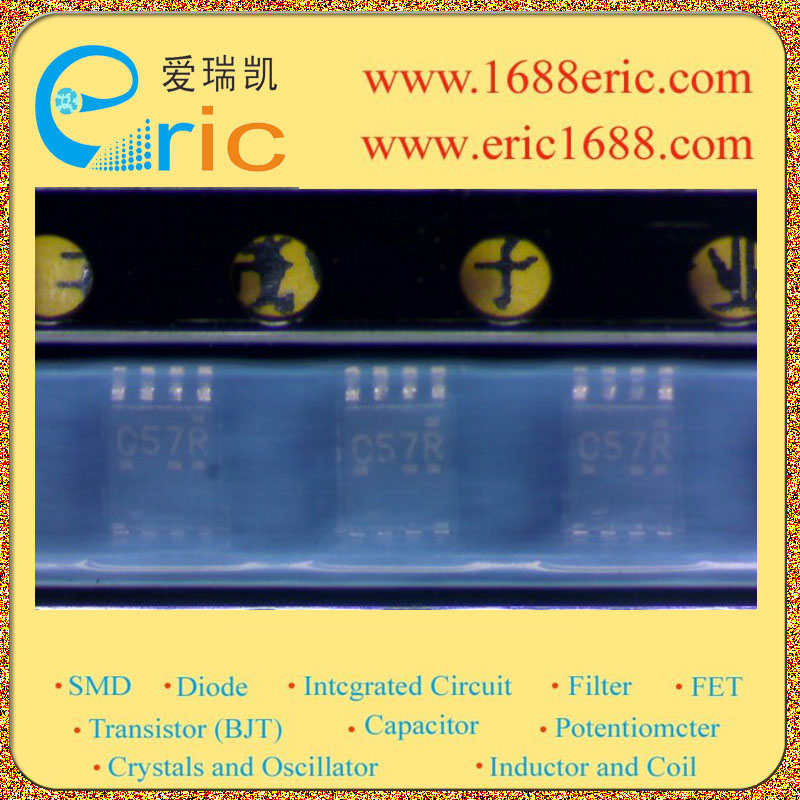

SN74LVC2G157DCUR

TEXAS INSTRUMENTS  SN74LVC2G157DCUR  芯片, 多路复用器, 单路, 2 输入, VSSOP-8

逻辑类型Logic Type| 多路复用器 Multiplexer \---|--- 电路数Number of Circuits| 1 x 2:1 输入数Number of Inputs| 1 电源电压VccVoltage - Supply| 32mA，32mA 静态电流IqCurrent - Quiescent Max| 单电源 Single Supply 输出高，低电平电流Current - Output High, Low| 1.65 V ~ 5.5 V 低逻辑电平Logic Level - Low| This single 2-line to 1-line data selector/multiplexer is designed for 1.65-V to 5.5-V VCC operation.The SN74LVC2G157 features a common strobe G input. When the strobe is high, Y is low and Y is high.When the strobe is low, a single bit is selected from one of two sources and is routed to the outputs. The device provides true and complementary data.NanoFree™ package technology is a major breakthrough in IC packaging concepts, using the die as the package.This device is fully specified for partial-power-down applications using Ioff. The Ioff circuitry disables the outputs,preventing damaging current backflow through the device when it is powered down. Available in the Texas Instruments NanoFree™ Packages Supports 5-V VCC Operation Inputs Accept Voltages to 5.5 V Max tpd of 6 ns at 3.3 V Low Power Consumption, 10-µA Max ICC ±24-mA Output Drive at 3.3 V Ioff Supports Partial-Power-Down Mode Operation Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II 高逻辑电平Logic Level - High| 这个单2线1线数据选择器/多路复用器器设计用于1.65-V到5.5 V的VCC操作。SN74LVC2G157拥有一个共同的选通信号（G）输入。当选通信号高，Y是低和Y是高。当选通信号为低电平时，从两个来源之一选择一个单个位，被路由到输出​​。该器件提供真正的和互补的数据。NanoFreeTM包装技术是IC包装概念的重大突破，使用冲模作为封装。这个装置是完全指定的部分断电应用程序使用IOFF。当断电时，IOFF电路关闭输出，防止破坏回流电流通过设备。 NanoFree™软件包 支持5-V VCC操作 接受输入电压到5.5 V 在3.3 V时，最大TPD为6 ns 低功耗，10μA最大ICC ±24 mA输出驱动，在3.3 V时 IOFF支持部分断电模式操作 闭锁性能超过100 mA每JESD 78，II类 传播延迟时间@Vcc，CLMax Propagation Delay @ V, Max CL| Description & Applications| 描述与应用|
