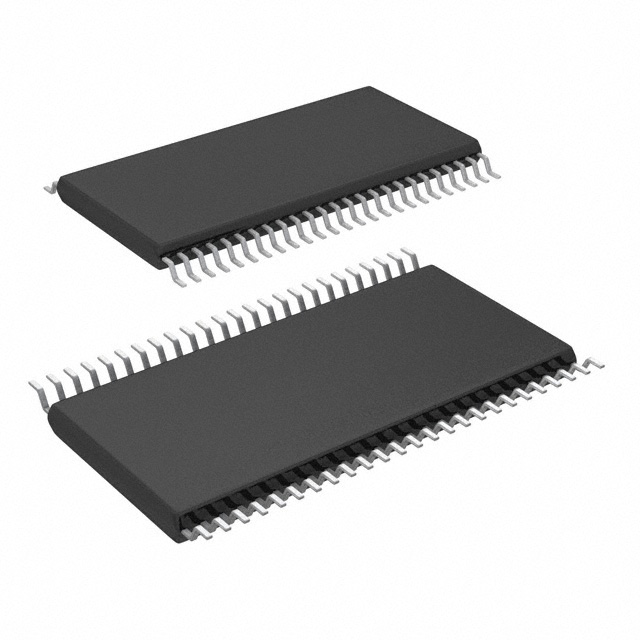

Registered Buffer Single 14CH CMOS 48Pin TSSOP T/R
Never worry about proper bits not being stored with this register from Texas Instruments. This register has a minimum operating temperature of 0 °C and a maximum of 70 °C. This product will be shipped in tape and reel packaging to allow for quick mounting and safe delivery. It has 14 channels per chip. This non-inverting device has a typical operating supply voltage of 2.5 V. Its minimum operating supply voltage of 2.3 V, while its maximum is 2.7 V. Its maximum frequency is 250Min MHz.
频率 250 MHz
电源电压DC 2.50 V
输出接口数 14
位数 14
电压波节 2.50 V
输出电流驱动 16.0 mA
输入数 14
工作温度Max 70 ℃
工作温度Min 0 ℃
电源电压 2.3V ~ 2.7V
电源电压Max 2.7 V
电源电压Min 2.3 V
安装方式 Surface Mount

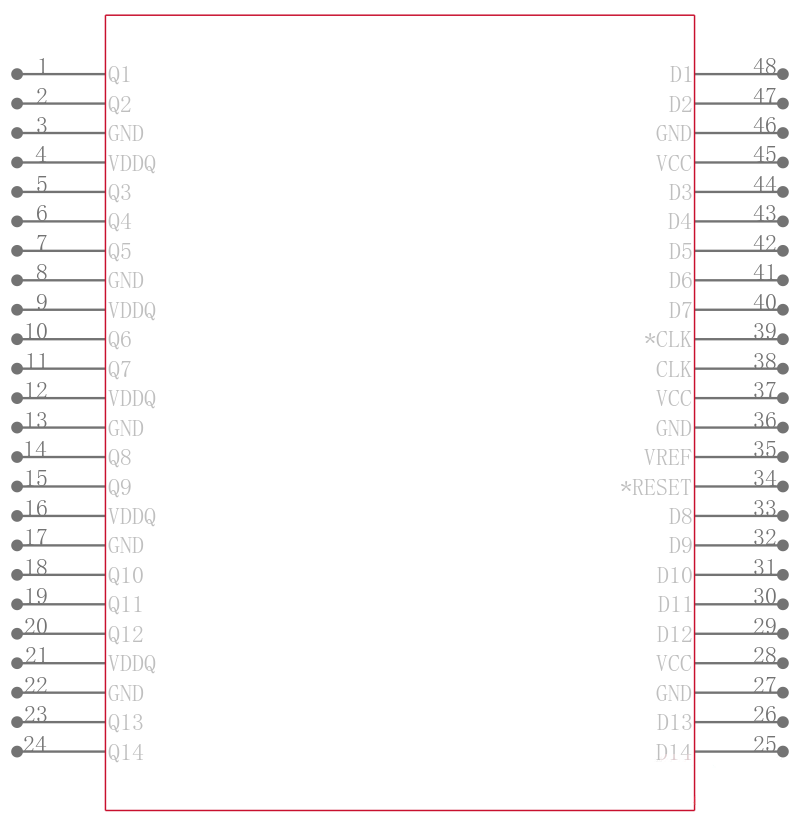

引脚数 48

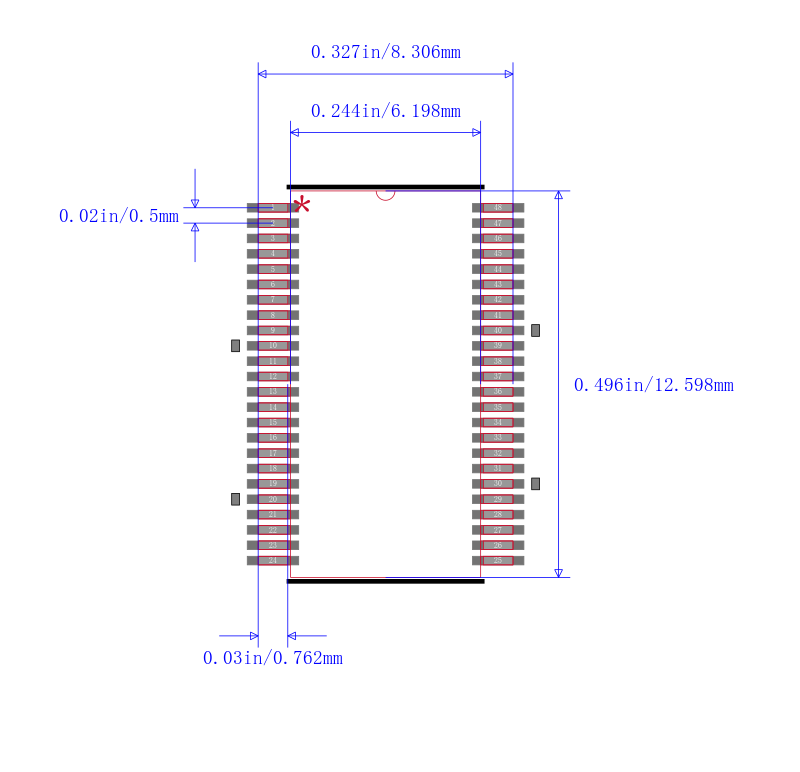

封装 TSSOP-48
封装 TSSOP-48
工作温度 0℃ ~ 70℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
SN74SSTVF16857GRG4 TI 德州仪器 | 当前型号 | 当前型号 |
SN74SSTVF16857GR 德州仪器 | 完全替代 | SN74SSTVF16857GRG4和SN74SSTVF16857GR的区别 |
PI74SSTV16857AEX 百利通 | 完全替代 | SN74SSTVF16857GRG4和PI74SSTV16857AEX的区别 |
SN74SSTV16857DGGR 德州仪器 | 类似代替 | SN74SSTVF16857GRG4和SN74SSTV16857DGGR的区别 |
