具有三态输出的 4 x 4 寄存器文件 16-SO 0 to 70
Never worry about proper bits not being stored with this register from Texas Instruments. With a 3-state output, this is power management at its best. This register has a minimum operating temperature of 0 °C and a maximum of 70 °C. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. This non-inverting device has a typical operating supply voltage of 5 V. Its minimum operating supply voltage of 4.75 V, while its maximum is 5.25 V. It has 4 channels per chip.
电源电压DC 4.75V ~ 5.25V
通道数 4
位数 16
传送延迟时间 45.0 ns
电压波节 5.00 V
输出电流驱动 -325 µA
工作温度Max 70 ℃
工作温度Min 0 ℃
电源电压 4.75V ~ 5.25V
电源电压Max 5.25 V
电源电压Min 4.75 V
安装方式 Surface Mount

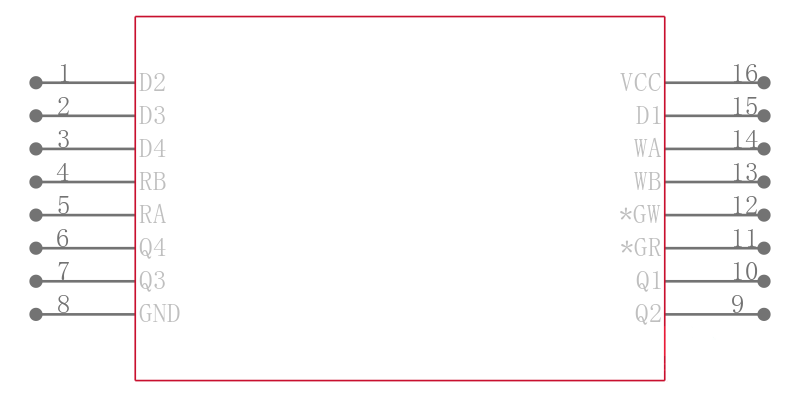

引脚数 16

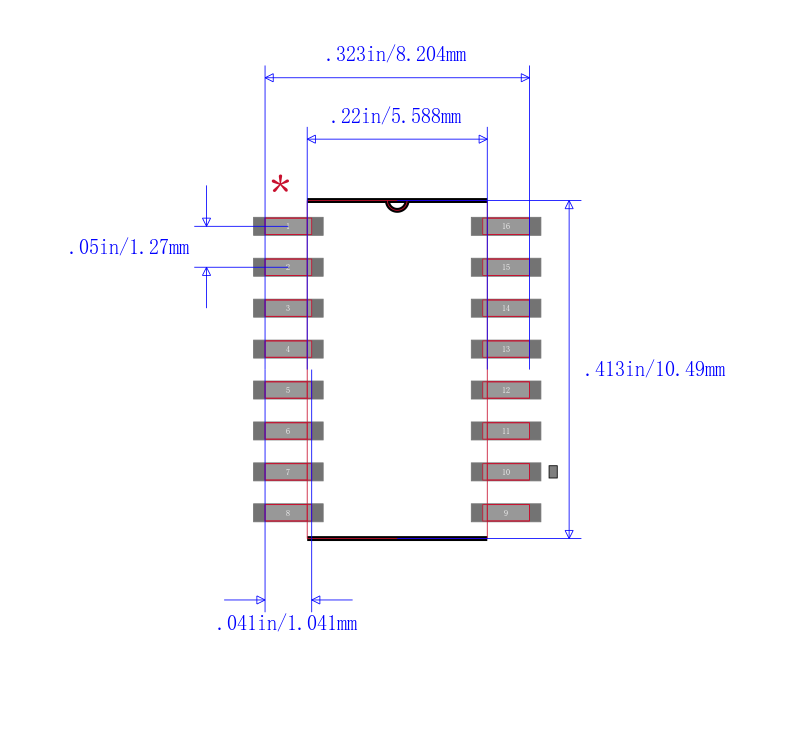

封装 SOP-16
长度 10.3 mm
宽度 5.3 mm
高度 1.95 mm
封装 SOP-16
工作温度 0℃ ~ 70℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
SN74LS670NSR TI 德州仪器 | 当前型号 | 当前型号 |
SN74LS670D 德州仪器 | 完全替代 | SN74LS670NSR和SN74LS670D的区别 |
SN74LS670DR 德州仪器 | 完全替代 | SN74LS670NSR和SN74LS670DR的区别 |
SN74LS670DRG4 德州仪器 | 完全替代 | SN74LS670NSR和SN74LS670DRG4的区别 |
