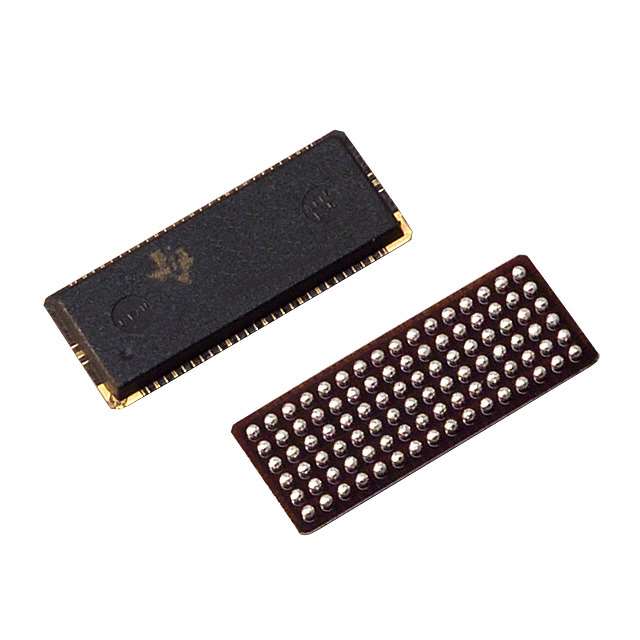

25 - BIT与SSTL_18输入和输出的配置寄存缓冲器 25-BIT CONFIGURABLE REGISTERED BUFFER WITH SSTL_18 INPUTS AND OUTPUTS
Never worry about proper bits not being stored with this register from Texas Instruments. This register has an operating temperature range of 0 °C to 70 °C. This product will be shipped in tape and reel packaging for quick mounting and safe delivery. Its maximum frequency is 500Min MHz. It has 25 channels per chip. This non-inverting device has a typical operating supply voltage of 1.8 V. Its minimum operating supply voltage of 1.7 V, while its maximum is 1.9 V.
电源电压DC 1.70V ~ 1.90V
输出接口数 25
位数 25, 14
传送延迟时间 2.50 ns
电压波节 1.80 V
静态电流 40.0 mA
输出电流驱动 -1.00 mA
工作温度Max 70 ℃
工作温度Min 0 ℃
电源电压 1.7V ~ 1.9V
电源电压Max 1.9 V
电源电压Min 1.7 V
安装方式 Surface Mount
引脚数 96

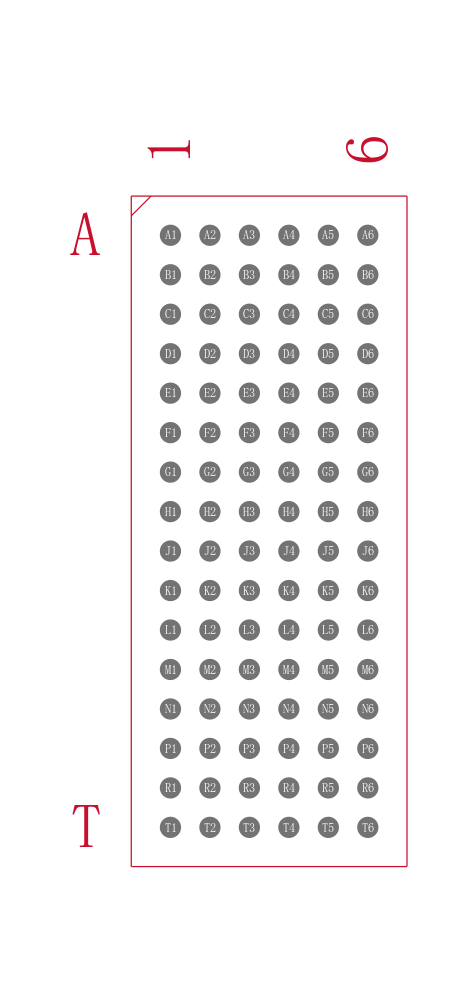

封装 LFBGA-96
高度 0.95 mm
封装 LFBGA-96
工作温度 0℃ ~ 70℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 Non-Compliant
含铅标准 Contains Lead
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
SN74SSTU32864GKER TI 德州仪器 | 当前型号 | 当前型号 |
SN74SSTU32864EZKER 德州仪器 | 完全替代 | SN74SSTU32864GKER和SN74SSTU32864EZKER的区别 |
SN74SSTU32864CGKER 德州仪器 | 完全替代 | SN74SSTU32864GKER和SN74SSTU32864CGKER的区别 |
