TEXAS INSTRUMENTS SE555DG4 芯片, 精密定时器, 单路, 18V, 8-SOIC
These devices are precision timing circuits capable of producing accurate time delays or oscillation. In the time-delay or mono-stable mode of operation, the timed interval is controlled by a single external resistor and capacitor network. In the a-stable mode of operation, the frequency and duty cycle can be controlled independently with two external resistors and a single external capacitor.
The threshold and trigger levels normally are two-thirds and one-third, respectively, of VCC. These levels can be altered by use of the control-voltage terminal. When the trigger input falls below the trigger level, the flip-flop is set, and the output goes high. If the trigger input is above the trigger level and the threshold input is above the threshold level, the flip-flop is reset and the output is low. The reset RESET input can override all other inputs and can be used to initiate a new timing cycle. When RESET goes low, the flip-flop is reset, and the output goes low. When the output is low, a low-impedance path is provided between discharge DISCH and ground.
The output circuit is capable of sinking or sourcing current up to 200 mA. Operation is specified for supplies of 5 V to 15 V. With a 5-V supply, output levels are compatible with TTL inputs.
频率 100 kHz
电源电压DC 4.50V min
供电电流 10 mA

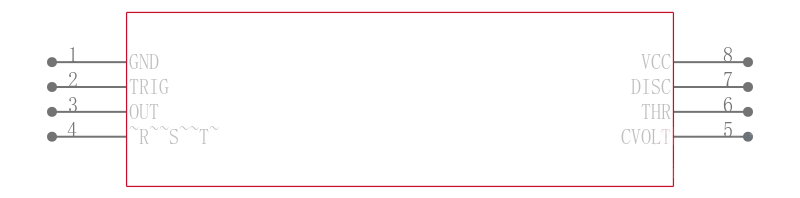

针脚数 8
静态电流 4.00 mA
工作温度Max 125 ℃
工作温度Min -55 ℃
电源电压 4.5V ~ 18V
电源电压Max 18 V
电源电压Min 4.5 V
安装方式 Surface Mount
引脚数 8
封装 SOIC-8
长度 4.9 mm
宽度 3.91 mm
高度 1.58 mm
封装 SOIC-8
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
SE555DG4 TI 德州仪器 | 当前型号 | 当前型号 |
SE555D 德州仪器 | 完全替代 | SE555DG4和SE555D的区别 |
SE555DRG4 德州仪器 | 完全替代 | SE555DG4和SE555DRG4的区别 |
NE555DR 德州仪器 | 类似代替 | SE555DG4和NE555DR的区别 |
