C & K COMPONENTS SDS004 探测器开关, SPST-常开, SMD, 100 mA, 12 V, 2 mm

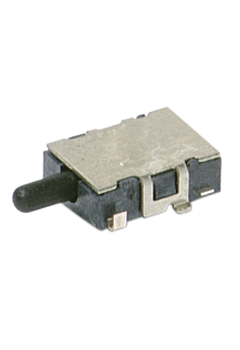

The is a SPST black surface-mount unsealed Side Actuated Detect Switch with OFF-mom switch function and glass filled polyamide overtravel plunger actuator. This SDS series switch has glass filled LCP base, gold flash plated phosphor bronze contacts and terminals.
- .
- Right-angle termination
- .
- Low-profile
- .
- 2mm overtravel ideal for detector applications
- .
- 75g Maximum low actuation force
- .
- 100mR Maximum initial contact resistance
- .
- 10MR Minimum Insulation Resistance at 100VDC
- .
- -40 to 85°C Operating temperature range
额定电压DC 12 V
额定电流 100mA DC
触点类型 SPST-NO
接触电阻 100 mΩ
额定电流Max 0.1A @12VDC
工作温度Max 85 ℃
工作温度Min -40 ℃
额定电压DC Max 12 V
接触电阻Max 100 mΩ
安装方式 Surface Mount
封装 SMD
长度 4 mm
宽度 4 mm
高度 2 mm
封装 SMD
触点材质 Phosphor Bronze
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Bulk
制造应用 消费电子产品, 医用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2016/06/20
ECCN代码 EAR99
HTS代码 8536509065
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
SDS004 C&K Components | 当前型号 | 当前型号 |
SDS004R C&K Components | 功能相似 | SDS004和SDS004R的区别 |
