低功耗GPS射频前端 Low power GPS RF front-end
The STA5630 is a fully integrated RF front-end able to down-convert either the GPS L1 signal from 1575.42 MHz to 4.092 MHz.
The STA5630 embeds high performance LNA minimizing external component count. The chip uses state of the art CMOS 65 nm technology.
A 3-bit ADC converts the IF signal to Sign SIGN and Magnitude MAG0 and MAG1. The magnitude bits are internally integrated in order to control the variable gain amplifiers. The VGA gain can be also set by the SPI interface.
The STA5630 accepts a range of reference clocks 10 to 52 MHz and generates a 16.368 MHz sampling clock GPS_CLK for the baseband. The STA5630 embeds LDO to supply the internal core of the device facilitating requirements to external power supply.
High performance, low power, and cost effective device, the STA5630 is the ideal solution for automotive, cellular and consumer battery powered applications.
**Key Features**
- .
- Integrated LNA
- .
- Low power consumption < 25 mW
- .
- 1.8 V supply voltage
- .
- GPS and Galileo compliant
- .
- Minimum external components
- .
- Serial interface
- .
- 3 bits A/D converter
- .
- CMOS 65 nm technology
- .

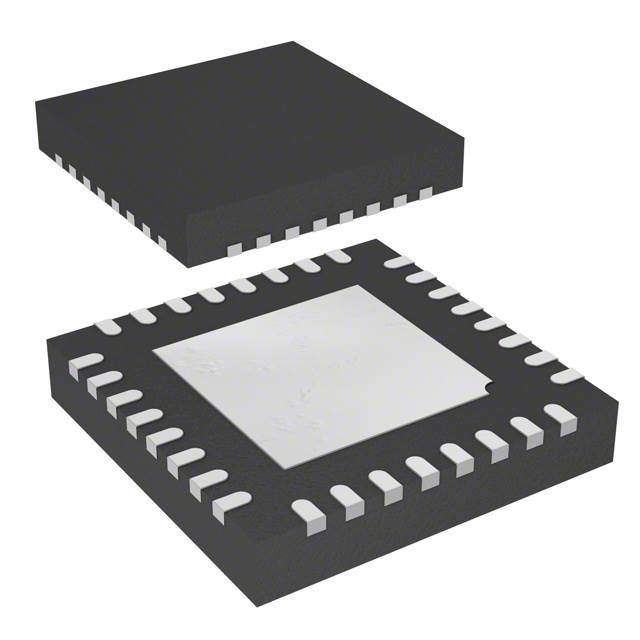

- Standard QFN-32 package
- .
- Ambient temperature range: -40 °C to +85 °C
