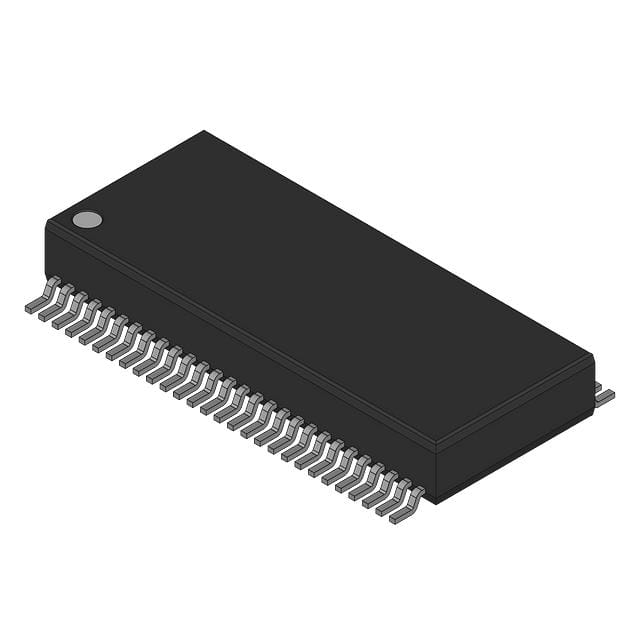

SN74ALVCH162268DL图片1
SN74ALVCH162268DL图片2
SN74ALVCH162268DL图片3
SN74ALVCH162268DL图片4
SN74ALVCH162268DL图片5
SN74ALVCH162268DL图片6
SN74ALVCH162268DL图片7
SN74ALVCH162268DL图片8
SN74ALVCH162268DL图片9
SN74ALVCH162268DL图片10
SN74ALVCH162268DL图片11
SN74ALVCH162268DL图片12
SN74ALVCH162268DL概述

12位至24位寄存总线交换器具有三态输出 12-BIT TO 24-BIT REGISTERED BUS EXCHANGER WITH 3-STATE OUTPUTS

This 12-bit to 24-bit registered bus exchanger is designed for 1.65-V to 3.6-V VCC operation.

The SN74ALVCH162268 is used for applications in which data must be transferred from a narrow high-speed bus to a wide, lower-frequency bus.

The device provides synchronous data exchange between the two ports. Data is stored in the internal registers on the low-to-high transition of the clock CLK input when the appropriate clock-enable CLKEN\ inputs are low. The select SEL\ line is synchronous with CLK and selects 1B or 2B input data for the A outputs.

For data transfer in the A-to-B direction, a two-stage pipeline is provided in the A-to-1B path, with a single storage register in the A-to-2B path. Proper control of these inputs allows two sequential 12-bit words to be presented synchronously as a 24-bit word on the B port. Data flow is controlled by the active-low output enables OEA\, OEB\\\\. These control terminals are registered, so bus direction changes are synchronous with CLK.

The B outputs, which are designed to sink up to 12 mA, include equivalent 26- resistors to reduce overshoot and undershoot.

To ensure the high-impedance state during power up or power down, a clock pulse should be applied as soon as possible and OE\ should be tied to VCC through a pullup resistor; the minimum value of the resistor is determined by the current-sinking capability of the driver. Due to OE\ being routed through a register, the active state of the outputs cannot be determined prior to the arrival of the first clock pulse.

Active bus-hold circuitry holds unused or undriven inputs at a valid logic state. Use of pullup or pulldown resistors with the bus-hold circuitry is not recommended.

SN74ALVCH162268DL中文资料参数规格
技术参数

电源电压DC 1.65V ~ 3.60V

输出接口数 24

输出电流 24 mA

供电电流 250 mA

电路数 12Bit ~ 24Bit

通道数 12

位数 24

传送延迟时间 5.40 ns

电压波节 3.30 V, 2.70 V, 2.50 V, 1.80 V

输出电流驱动 -1.00 mA

输入数 12

工作温度Max 85 ℃

工作温度Min -40 ℃

电源电压 1.65V ~ 3.6V

电源电压Max 3.6 V

电源电压Min 1.65 V

封装参数

安装方式 Surface Mount

引脚数 56

封装 SSOP-56

外形尺寸

长度 18.41 mm

宽度 7.49 mm

高度 2.59 mm

封装 SSOP-56

物理参数

工作温度 -40℃ ~ 85℃

其他

产品生命周期 Active

包装方式 Tube

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

REACH SVHC标准 No SVHC

REACH SVHC版本 2014/12/17

海关信息

ECCN代码 EAR99

数据手册

SN74ALVCH162268DL引脚图与封装图
SN74ALVCH162268DL引脚图
SN74ALVCH162268DL封装图
SN74ALVCH162268DL封装焊盘图
