24V,5线单向TVS阵列
5-Line Transient Voltage Suppressor Array
This 5−line voltage transient suppressor array is designed for application requiring transient voltage protection capability. It is intended for use in over−transient voltage and ESD sensitive equipment such as computers, printers, automotive electronics, networking communication and other applications. This device features a monolithic common anode design which protects five independent lines in a single TSOP−6 package.
Features
• Protects up to 5 Lines in a Single TSOP−6 Package
• Peak Power Dissipation − 350 W 8 X 20 μs Waveform
• ESD Rating of Class 3B Exceeding 8.0 kV per Human Body Model and Class C Exceeding 400 V per Machine Model
• Compliance with IEC 61000−4−2 ESD 15 kV Air, 8.0 kV Contact
• Flammability Rating of UL 94 V−0
• These are Pb−Free Devices
Applications
• Hand−Held Portable Applications
• Networking and Telecom
• Automotive Electronics
• Serial and Parallel Ports
• Notebooks, Desktops, Servers
额定电压DC 24.0 V
工作电压 24 V
电容 75 pF
额定功率 350 W
无卤素状态 Halogen Free
击穿电压 26.7 V
针脚数 6
耗散功率 350 W
钳位电压 44 V
测试电流 1 mA
脉冲峰值功率 350 W
最小反向击穿电压 26.7 V
击穿电压 26.7 V
工作温度Max 150 ℃
工作温度Min -40 ℃
安装方式 Surface Mount
引脚数 6

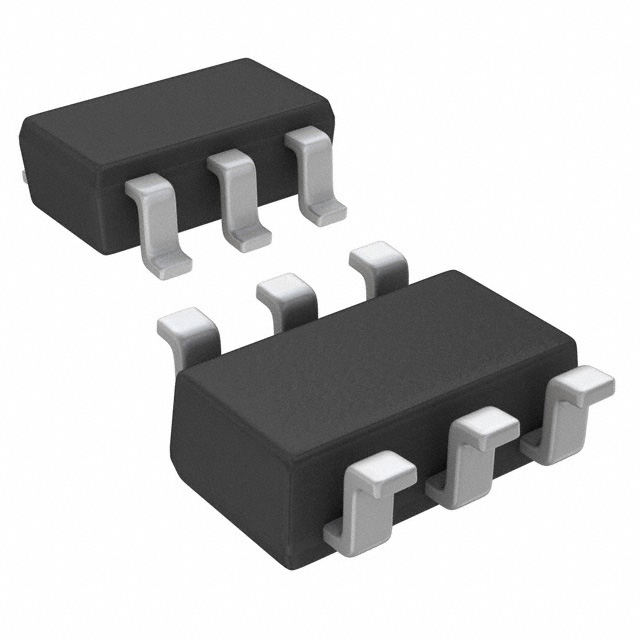

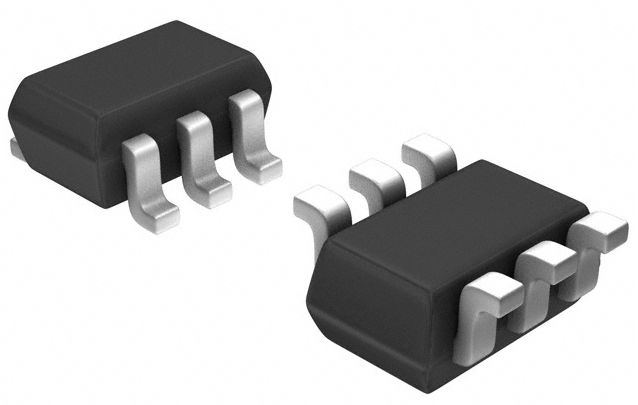

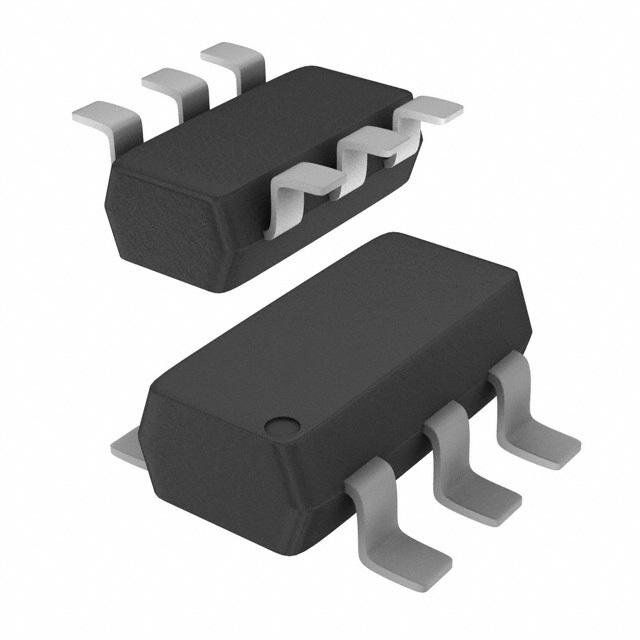

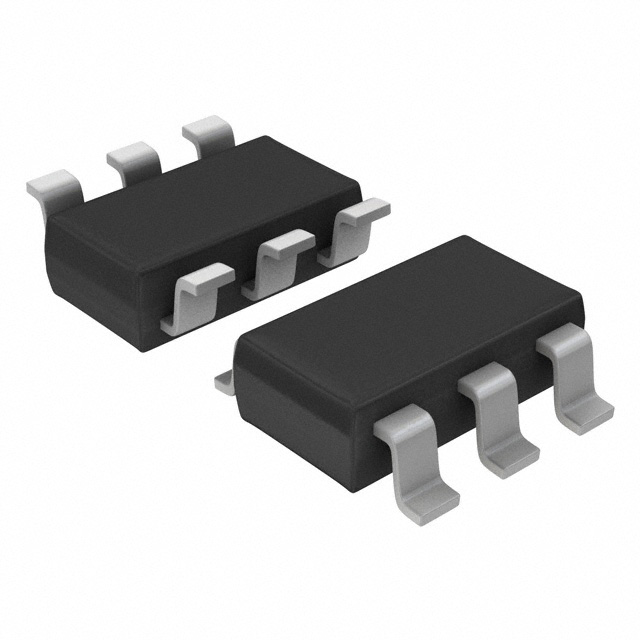

封装 TSOT-23-6
长度 3 mm
宽度 1.5 mm
高度 0.94 mm
封装 TSOT-23-6
工作温度 -40℃ ~ 150℃ TJ
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 通用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
SMS24CT1G ON Semiconductor 安森美 | 当前型号 | 当前型号 |
SMS24CT1 安森美 | 功能相似 | SMS24CT1G和SMS24CT1的区别 |
