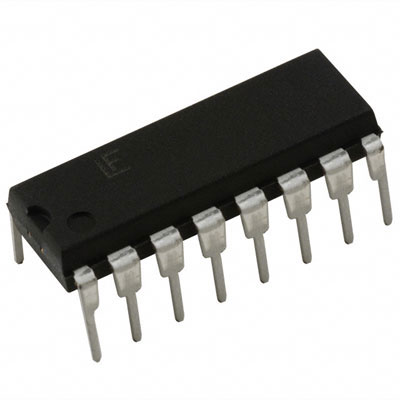

LITTELFUSE SP720APP 静电保护装置, TVS, DIP, 16 引脚, 30 V
The is a 16-pin TVS Diode Array with matte tin-plated copper alloy leads and moulded epoxy body. The SP720 is an array of SCR/diode bipolar structures for ESD and overvoltage protection to sensitive input circuits. The SP720 has 2 protection SCR/diode device structures per input. A total of 14 available inputs can be used to protect up to 14 external signal or bus lines. The SCR structures are designed for fast triggering at a threshold of one +VBE diode threshold above V+ pin 16.
额定电压DC 30.0 V
工作电压 30 V
电容 3 pF
电路数 14
通道数 14
针脚数 16
工作温度Max 105 ℃
工作温度Min -40 ℃
安装方式 Through Hole
引脚数 16
封装 DIP-16
长度 19.7 mm
宽度 7.11 mm
高度 4.95 mm
封装 DIP-16
产品生命周期 Active
包装方式 Each
制造应用 Communications & Networking, Safety, 通信与网络, 通用, 安全
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2014/06/16
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
SP720APP Littelfuse 力特 | 当前型号 | 当前型号 |
SP720AP 力特 | 类似代替 | SP720APP和SP720AP的区别 |
