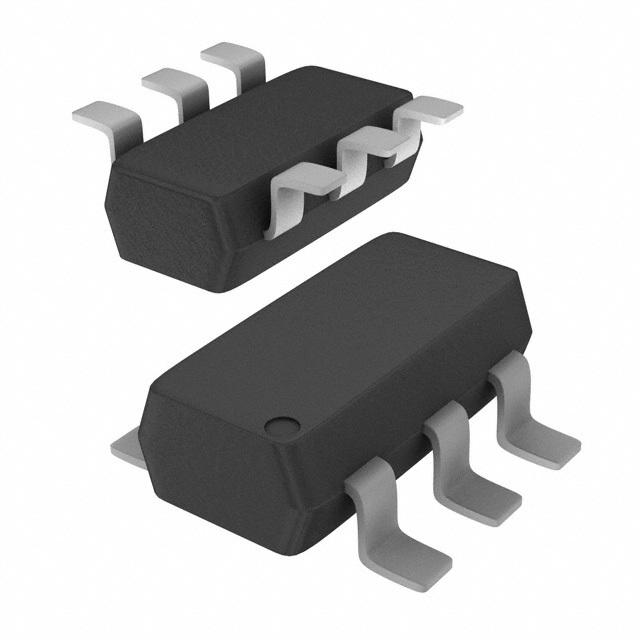

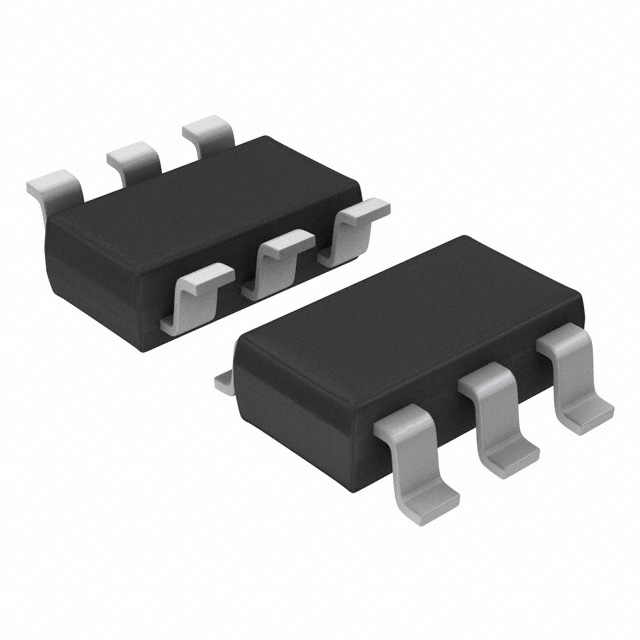

ON SEMICONDUCTOR SMS05CT1G TVS二极管, TVS, SMS05C系列, 单向, 5 V, 14.5 V, TSOP, 6 引脚
350W 瞬态电压抑制器阵列,用于 ESD 保护
### 瞬态电压抑制器,On Semiconductor
欧时:
TVS 二极管 ON Semiconductor SMS05CT1G 单向, 350W, 14.5V, 6针 TSOP封装
得捷:
TVS DIODE 5VWM 14.5VC 6TSOP
立创商城:
SMS05CT1G
贸泽:
ESD 抑制器/TVS 二极管 5 Line TVS Array
e络盟:
TVS二极管, SMS05C系列, 单向, 5 V, 14.5 V, TSOP, 6 引脚
艾睿:
Protect your electronic components and circuit from dangerous electrostatic discharge with this tvs SMS05CT1G ESD protection device from ON Semiconductor. This ESD diode has a maximum ESD protection device voltage of 15@Air Gap/8@Contact Disc/8@HBM/0.4@MM kV. This device&s;s maximum clamping voltage is 14.5 V. This ESD diode has an operating temperature range of -40 °C to 150 °C. Tape and reel packaging will encase the product during shipment, ensuring safe delivery and enabling quick mounting of components. It is made in a quint common anode configuration.
Allied Electronics:
SMS05CT1G; Quint Uni-Directional TVS Diode; 350W; 6-Pin TSOP
安富利:
ESD Suppressor TVS 15KV 6-Pin TSOP T/R
Chip1Stop:
ESD Suppressor TVS 15KV 6-Pin TSOP T/R
Verical:
ESD Suppressor Diode TVS Uni-Dir 5V Automotive 6-Pin TSOP T/R
Newark:
# ON SEMICONDUCTOR SMS05CT1G Transient Voltage Suppressor, TVS, SMS05C Series, Unidirectional, 5 V, TSOP, 6, 6.2 V
力源芯城:
5线TVS
Win Source:
TVS DIODE 5VWM 14.5VC 6TSOP
额定电压DC 5.00 V
工作电压 5 V
电容 400 pF
额定功率 350 W
无卤素状态 Halogen Free
击穿电压 6.2 V
电路数 5
针脚数 6
耗散功率 350 W
钳位电压 14.5 V
测试电流 1 mA
最大反向击穿电压 7.2 V
脉冲峰值功率 350 W
最小反向击穿电压 6.2 V
击穿电压 6.2 V
工作温度Max 125 ℃
工作温度Min -40 ℃
安装方式 Surface Mount
引脚数 6
封装 TSOT-23-6
长度 3.1 mm
宽度 1.7 mm
高度 1 mm
封装 TSOT-23-6
工作温度 -40℃ ~ 150℃ TJ
产品生命周期 Active
包装方式 Cut Tape CT
制造应用 工业, 车用, Industrial, 通用, Communications & Networking, Computers & Computer Peripherals, 通信与网络, Automotive, 计算机和计算机周边
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
SMS05CT1G ON Semiconductor 安森美 | 当前型号 | 当前型号 |
SMS05CT1 安森美 | 完全替代 | SMS05CT1G和SMS05CT1的区别 |
